Micro Dyne System

Micro Dyne

Product Description

Finally… a Micro Dyne system designed specifically for your micro motors!

With over 50 years’ experience in dynamometer design and torque measurement, Magtrol has revolutionized the industry. Magtrol’s new Micro Dyne, capable of measuring extremely low torques (2.0 mN·m can be resolved to 0.0004 mN·m), is designed exclusively for testing miniature and micro motors.

For the utmost convenience, the Micro Dyne is packaged as a complete motor testing system. Everything that is needed to accurately and efficiently test miniature motors and micro motors is included with the purchase of a Magtrol Micro Dyne. The only component that needs to be supplied by the customer is a laptop or desktop personal computer and a motor power supply.

System Components

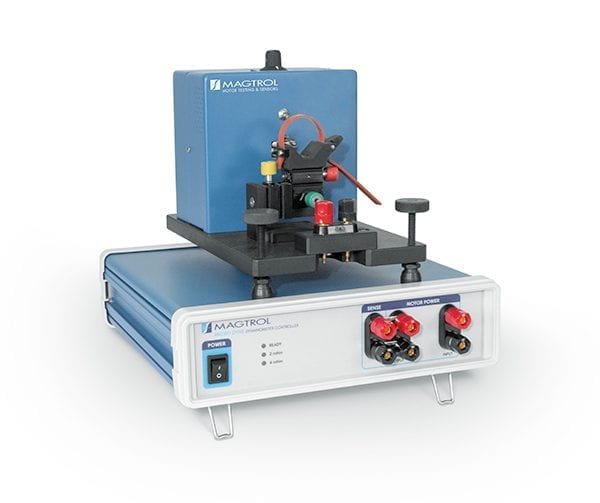

Dynamometer

The Micro Dyne dynamometer absorbs power with Magtrol’s unique Hysteresis Braking System. Because it does not require speed to create torque, the dynamometer can conduct a full motor ramp—from free-run to locked rotor. In addition to a dedicated motor fixture, the dynamometer base plate also includes leveling knobs and motor power terminals. The housing of the dynamometer protects all the moving parts of the brake.

Electronic Unit

At the hub of the Micro Dyne system is a multifunctional electronic unit. The unit employs DSP technology for high-speed data acquisition and complete PC control of the dynamometer. A USB receptacle enables easy connection to a personal computer. An integrated DC wattmeter reads volts and amps, and calculates watts; and a built-in power relay controls motor power (on/off). The front panel includes the terminals for motor power in/out and voltage sensing. LED power and communication indicators are located on the rear panel of the unit.

Motor Fixture

Attached to the dynamometer base plate is a motor fixture designed expressly for micro/miniature motors. The base of the fixture features an XYZ stage with 3-axis positioning for excellent adjustability and motor centering. With the included adapters, motors from 5 mm to 30 mm in diameter can be easily mounted. The fixture is keyed to help secure the motor under test and a rubber strap with knurled cam grip provides motor clamping.

Features

  • Designed specifically for miniature and micro motors
  • Torque: Easily convertible from 2.0 mN·m to 4.0 mN·m (0.28 oz·in to 0.57 oz·in)
  • Speed: up to 100,000 rpm
  • Power: 4 W
  • Low inertia
  • Banner D10 Expert™ Fiber Optic Sensor (located on the side of the electronics box on older models)
  • Keyence FS-N10 Series Digital Fiber Sensor (located inside the dynamometer enclosure of the new model)

Sold as a complete, out-of-the-box motor testing system. Components include:

  • Hysteresis Dynamometer: provides precise torque loading independent of shaft speed
  • Motor Fixture: accommodates motors from 5 mm to 30 mm in diameter.
  • Dedicated Electronics: all-in-one dynamometer controller, wattmeter, power relay and USB interface
  • Comprehensive Motor Testing Software: new version of Magtrol’s M‑TEST 7, updated for the Micro Dyne
  • Easy-to-use calibration software
  • All necessary connection cables
  • Calibration weights: 5 g and 10 g

Specifications

The Micro Dyne offers two different torque configurations in one unit. Depending on the motor’s maximum torque rating, the user can easily switch between the 2.0 mN·m and 4.0 mN·m torque settings via the dynamometer’s rear access panel. The ratings are the same for either configuration.

Maximum Torque (mN·m)Nominal Input Inertia (kg·cm²)Maximum Kinetic Power - 5 Minutes (W)Maximum Kinetic Power - Continuous (W)Maximum Speed (rpm)Accuracy (Torque)Accuracy (Speed)
4.0 or 2.05.43 × 10-444100,000< 1 % of Full Scale< 0.02% of Reading

*NOTE: Operating at the continuous power rating for periods of up to 4 hours is acceptable. However, operating for extended periods at high temperatures will result in premature component and bearing failure. Limiting the length of the cycle and the component temperatures will guard against premature failure. Where continuous duty is desired for longer time intervals, component temperatures should be maintained less than 100°C; monitoring the outside brake surface temperature is a sufficient reference.

Power Absorption Curve

Based on the maximum kinetic power ratings, the curve below represents the maximum power (heat) that the dynamometer can dissipate over time. The area under the curve equals the maximum torque/speed combinations for both a motor test of less than 5 minutes (intermittent duty) and a continuous-duty motor test.

Electronic Unit

General Electrical Characteristics
Fuse (5 × 20 mm)IEC 315 mA 250 V T
Power Requirements14 VA
Voltage Requirements85 – 264 VAC 60/50 Hz
Power Measurement (DC)
Current Input (Isolated)±5 A
Voltage Input (Isolated)±30 V
AccuracyUp to 0.02%

Motor Fixture

Motor Accommodation
Motor Diameter5 mm – 30 mm
Motor Length5 mm – 50 mm
Motor Shaft Diameter0.75 mm – 3 mm
Maximum Load100 g

Applications

Magtrol motor test systems can be found in test labs, at inspection stations, and on the manufacturing floors of most of the world’s leading motor manufacturers. The Micro Dyne system is used exclusively for closed-loop testing of miniature motors and micro motors used in low-torque/high-speed applications. Motor sub-types include, but are not limited to, the following:

  • Brushed and brushless DC motors
  • Miniature stepper motors
  • Gearmotors
  • Brushless DC servomotors
  • Vibrator motors
  • Miniature air motors

These mini/micro motors are used in a diverse range of industries and products, including:

  • Medical and laboratory equipment
  • Robotics and automation
  • Toys
  • Handheld communication devices
  • Audio/video equipment
  • Optics and photonics
  • Aerospace and defense
  • Security and instrumentation
  • Industrial machinery
