Accessories
System options and accessories for your Magtrol Dynamometer include coupling guards, calibration beams and weights, dynamometer switch boxes, shunts and risers for your TM Series Transducers.
-

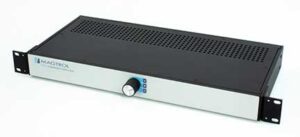

View ProductRead more5502/5503 – Manual Dynamometer Switch Box
Magtrol Models 5502 and 5503 are manually-operated switch boxes that permit the connection of up to three Magtrol Dynamometers to a single Dynamometer Controller. Use of the switch boxes facilitates quick and easy interfacing to multiple dynamometers without the need to disconnect and reconnect the brake and control cables. For Magtrol WB Eddy-current or PB… Read more »
-

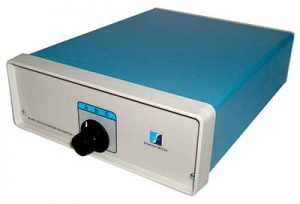

View ProductRead more5500/5501 – Manual Dynamometer Switch Boxes
Magtrol Models 5500 and 5501 are manually-operated switch boxes that permit the connection of up to three Magtrol Dynamometers to a single DSP7000 Dynamometer Controller. Use of the switch boxes facilitates quick and easy interfacing of multiple dynamometers without the necessity of disconnecting and reconnecting the brake and control cables. For Magtrol WB Eddy-current or… Read more »
-
View ProductRead moreSBB15 – Signal Breakout Box
Magtrol’s SBB15 Signal Breakout Box is designed to assist in the monitoring of speed, torque, and index signals obtained from either a Magtrol dynamometer or torque transducer. The easy-to-use SBB15 is simply inserted in series between a Magtrol controller and any Magtrol dynamometer or torque transducer. Connections are made via D-Sub 15 signal cables. Speed,… Read more »
-
View ProductRead moreSBB14 – Signal Breakout Box
Magtrol’s SBB14 Signal Breakout Box is designed to assist in the monitoring of speed, torque and index signals obtained from either a Magtrol dynamometer or torque transducer. The easy-to-use SBB14 is simply inserted in series between a Magtrol controller and any Magtrol dynamometer or torque transducer. Connections are made via 14-pin signal cables. Speed, torque… Read more »
-

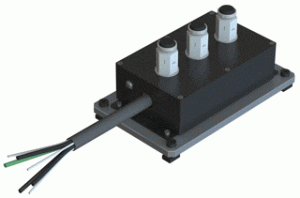

View ProductRead morePCB – Motor Power Connection Box
The PCB Power Connection Box is a simple interface connection for powering a motor under test. One end is attached to a (customer-supplied) power supply and the other end is attached, via lead wires, to a test motor.
-

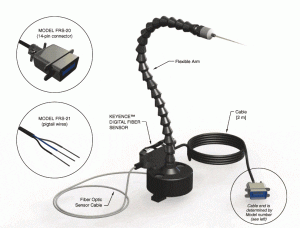

View ProductRead moreFRS – Free-Run Speed Sensor
Magtrol’s FRS Free-Run Speed Sensor is used for accurate measurement of the free-run speed of any motor under test. The FRS Sensor is composed of 3 primary components: Keyence™ Digital Fiber Optic Sensor Fiber Optic Sensor Cable Flexible Arm with Base
-

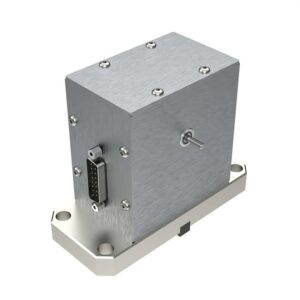

View ProductRead moreEMA Series – Stand Alone Encoder
Magtrol’s EMA Series Stand Alone Encoder provides a squarewave output on two channels for up/down counting or free-runmotor speed measurement applications. Each channel outputs the specified pulses per revolution of the encoder shaft, and is 90° phase-shifted in order to determine direction when used with the appropriate counter/timer DAQ board. The device incorporates an infrared… Read more »
-
View ProductRead moreRTM Series – Riser Kits for In-line Torque Transducers
Magtrol’s PT Series T-slot Base Plates are used for creating a basic test rig by mounting a Magtrol Dynamometer, Brake or Torque Transducer in line with the unit to be tested. Depending on the system configuration, a riser may be required to lift the transducer from the baseplate to the shaft height of the brake… Read more »
-
View ProductRead moreTCBS – Thermocouple Connection Box

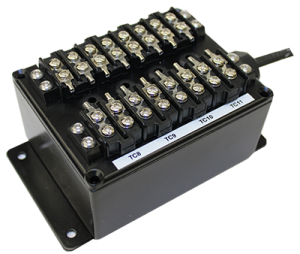

The TCBS Thermocouple Connection Barrier Strip provides a method of connection the data acquisition device, which is usually installed in the main console, to the device being monitored up to 3 meters away. All eight thermocouples pairs are bundled into a single cable and terminated in a die cast aluminum box with barrier strip jackets… Read more »
-
View ProductRead morePC-150 – 150 Amp Polarity Changer

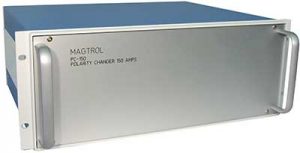

The PC-150 Polarity Changer uses Magtrol’s M-TEST 7 Software to remotely switch the polarity of a DC power supply in order to reverse the direction of the motor under test. When switching polarity, the voltage sense lines will also change in order to maintain the proper polarity on the power supply sense terminals.
-
View ProductRead moreCoupling Guards
Magtrol Coupling Guards are easily removable and designed to mount in front of Magtrol HD Series Dynamometers. They are also available for some WB Series Dynamometers. Coupling Guards help keep objects from vertical interference and aid in preventing accidental coupling contact during rotation. The guard length required will change according to the coupling size used… Read more »
-

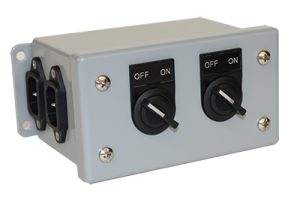

View ProductRead moreRSB – Remote Switch Box
The Remote Switch Box is used in conjunction with the TAB 825 Series Dynamometer Tables to control the on/off function of the blowers. It is typically attached to the underside of the table and provides a convenient method for powering the blowers on & off. Originally designed for use with 120 Vac blowers, the RSB… Read more »
-
View ProductRead moreExternal Shunts

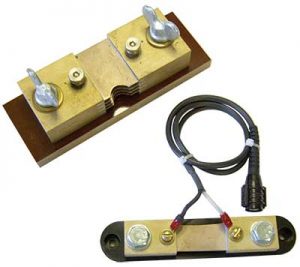

If currents continuously reach above 20 amps, an external sensor must be used. Magtrol offers three different types of external shunts for use with Magtrol Power Analyzers. The HA Series shunt, designed for power cable hook-up utilizing 3/8-16 screws, has an insulating base and can be mounted on conductive surfaces. The LAB Series shunt also… Read more »
-

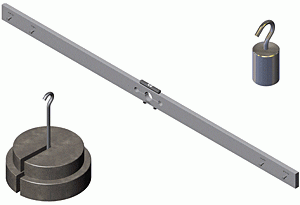

View ProductRead moreCalibration Beams and Weights
Magtrol offers these calibration beam assemblies and weights for calibrating HD-Series Hysteresis Dynamometers. To perform a successful dynamometer calibration, precision weights heavy enough to apply a torque at or close to the full scale rating are required. Magtrol WT Series Calibration Weights are equal to the dynamometer’s torque value, divided by the distance between the… Read more »
