Force Sensors
Magtrol’s line of force sensors include the DB-11, DB-DA/DB-DC, DD-03, MD-01, ZB, ZC, ZF/ZF-S, ZM/ZM-S, ZP-S and the ZS.
-

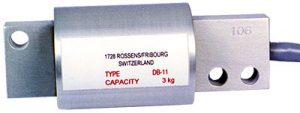

View ProductRead moreDB-11 – Force Transducer
The Magtrol DB-11 Transducer is designed for measuring both static and dynamic forces. Using strain gauge technology, a deformation of the sensing element provides an electrical signal proportional to the force being measured.
-

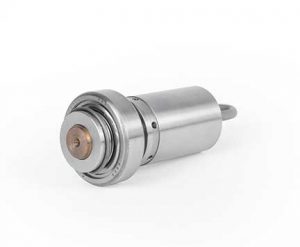

View ProductRead moreDB-DA and DB-DC - Transducers for Ball Bearing Radial Force Measurement
Magtrol DB-DA and DB-DC transducers are designed for measuring radial forces in ball bearings. Available in several diameters and temperature ranges, these transducers incorporate strain gauge technology and provide a signal output proportional to the force to being measured.
-

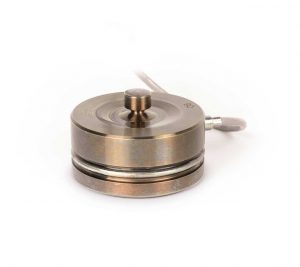

View ProductRead moreMD-01 – Transducers
Magtrol’s MD-01 Transducers are designed for measuring static and dynamic compression loads. Using strain gauge technology, deformation of the sensing element provides an electrical signal proportional to the load or force being measured. With quick single-screw mounting, this transducer can be easily integrated into wide array of applications.
-
View ProductRead moreZB Series – Load Cells
The load cells of the ZB series have been designed for use under industrial conditions in hybrid type weighing systems up to Class III, for which calibration is obligatory. Made entirely of stainless steel , they are an excellent choice for weighing systems in the foodstuff industry. The sensing element itself is a twin-bend design… Read more »
-

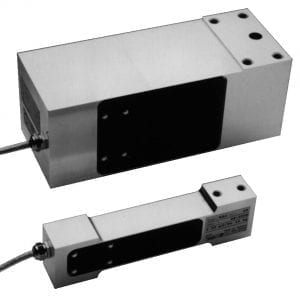

View ProductRead moreZC Series – Load Cells
Note: Not available in the US. The load cells of the ZC series have been designed for application in platform scales in the classes C1 to C3 according to OIML-RI 60 for platform sizes up to 600The load cells of the ZC series have been designed for application in platform scales in the classes C1… Read more »
-

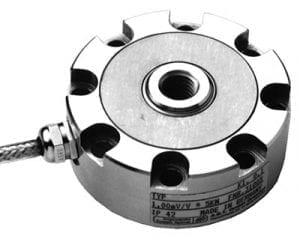

View ProductRead moreZF Series and ZF-S Series – Force Transducers
*Not available in the US. The force transducers of the ZF / ZF-S Series have been designed for the measurement of static and dynamic tensile and pressure forces; they are characterized by their low assembly height at a high measuring accuracy. The force is introduced on one side through a central tapped hole, the other… Read more »
-
View ProductRead moreZM Series – Force Transducers
Note: Not available in the US. Magtrol’s ZM Series Force Transducers are designed to measure static and dynamic pressure forces. They are characterized by their small dimensions. Manufactured in stainless steel or high-resistance aluminum, these transducers can be used in a wide variety of applications. In particular, the stainless steel versions with a high degree… Read more »
-

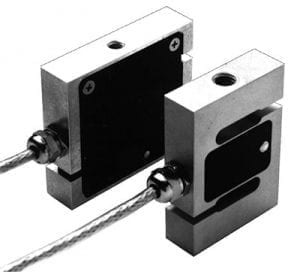

View ProductRead moreZP-S Series – Force Transducers
Note: not available in the US. The force transducers of the ZP-S Series are designed for the measurement of static and dynamic forces and are characterized by their low dimensions at a high measuring accuracy. The force is introduced centrally through a tapped hole. A strain gauge bridge converts the elastic deformation of the S-shaped… Read more »
-
View ProductRead moreZS Series – Load Cell
Note: Not available in the US. The ZS load cells are made entirely of a special stainless steel and are, therefore, also suitable as weighing plants under difficult environmental conditions. The sensor element itself is fabricated as a transverse body. A metal diaphragm, which is welded on to the deformation zone protects the sensitive strain… Read more »
