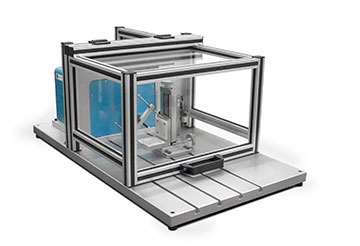

WB 23 and WB 27 – High-Speed Eddy-Current Dynamometers

Support & Downloads

Product BrochureProduct ManualProduct Datasheet

Product Description

Magtrol’s WB 23 and WB 27 Eddy-Current Dynamometers are designed for very high-speed motors and dental or surgical tool testing applications. By providing a braking torque that is proportional to the rotational speed, rated torque is reached at the rated speed. The Dynamometer features a low level of inertia, due to small rotor dimensions, and brake cooling is provided by air flow inside the dynamometer housing.

A PT temperature sensor continuously monitors the brake temperature and alarms the DSP 7010 Controller to stop the brake excitation current in order to protect the dynamometer from overheating. Torque is measured by a reaction torque transducer placed on the stator. The dynamometer has a torque measuring accuracy rating of ± 0.2 % full scale. The speed is measured by an optical sensor and a 2-PPR encoder. This sensor measures speeds between 10 000 rpm and 100 000 rpm with a full scale accuracy of ± 0.06 % (using a DSP 7010).

Features

  • Torque: 80 mN·m and 150 mN·m
  • Speed: up to 100 000 rpm
  • Power: 250 W continuous; up to 500 W (WB 23) or 1 kW (WB 27) intermittent
  • Low inertia
  • Very low residual torque
  • Stable and smooth braking torque
  • Measuring system with air-bearing
  • Data acquisition via DSP 7010 Controller and M-TEST Software
  • Built-in electronics with Torque & Speed measurement

Operating Principles

The WB 23 and WB 27 Eddy-current Dynamometer provides full braking power at high speed. This type of brake has been specially designed to test motors rotating at speeds up to 100 000 rpm, with the braking torque dependent upon the rotation speed. Due to the 2-PPR encoder, the system is not designed to provide closed loop control below 10 000 rpm.

The dynamometer includes air bearings for minimizing friction and assuring the best possible torque reading accuracy. It is necessary to connect the air input through the air filtering and drying kit (included).

Specifications

MODELRATED POWER
[W]		DURATION AT
RATED POWER
[s]		GUARANTEED
TORQUE
[mN·m]		RATED SPEED
[rpm]		MAX. SPEED
[rpm]		DRAG TORQUE
DE-ENERGIZED
(at 100 000 rpm)
[mN·m]		NOMINAL
INPUT
INERTIA
[kg·m2]		EXCITATION
CURRENT MAX.
[A]
RATINGS
WB 23250steady operation8030 000100 00023.2 x 10-60.8
4001808050 000100 00023.2 x 10-60.8
5001208060 000100 00023.2 x 10-60.8
WB 27250steady operation15016 000100 00028.75 x 10-60.5
50018015032 000100 00028.75 x 10-60.5
1 0004515063 000100 00028.75 x 10-60.5
MECHANCAL & ELECTRICAL CHARACTERISTICS
Weight~ 18 kg (short base plate) / ~ 21 kg (long base plate)
Air SupplyRecommended air quality ISO 8573.1 Class 3 | Air flow: 7-10 l / min | Pressure: 4-5 bar (max. 6 bar)
Power Supply90 - 230 VAC

System Options

To help you select the components for your motor testing system, this table shows which (currently available) electronics and software support Magtrol’s different types of dynamometers.

ModelDescriptionHysteresis Dynamometers (including ED Series)Eddy-current DynamometersPowder Brake DynamometersDial Weight Dynamometers
DYNAMOMETER CONTROLLERS
DSP7010Dynamometer Controller•••
DSP7000High-Speed Programmable Dynamometer Controller•••
OTHER ELECTRONICS
TSC SeriesTorque/Speed Conditioner
5500Dynamometer Switch Box•
5501Dynamometer Switch Box••
5502Dynamometer Switch Box•
5503Dynamometer Switch Box••
SOFTWARE
M-TEST 7Motor Testing Software•••
POWER SUPPLIES
DES SeriesPower Supply••
5241Power AmplifierRequired for HD-825 Only
5242Power AmplifierRequired for HD-825 Only
5200Power Supply•
5210Current-Regulated Power Supply•
5250Current-Regulated Power Supply•
ACCESSORIES
TABDynamometer Tables••••
AMFAdjustable Motor Fixtures•
FMFFixed Motor Fixtures•
PTT-Slot Base Plate•••
FRSFree-Run Speed Sensor•••
SBB14Signal Breakout Box•••
SBB15Signal Breakout Box•••

Dynamometer Selection

Magtrol Dynamometers cover a wide range of Torque, Speed and Mechanical Power ratings. To select the appropriate size Dynamometer for your motor testing needs, you will need to determine the Maximum Torque, Speed and Power applied to the Dynamometer:

Maximum Torque

It is important to consider all torque points that are to be tested, not only rated torque, but also Locked Rotor and Breakdown Torque. Dynamometer selection should initially be based on the maximum torque requirement, subject to determining the maximum power requirements.

Maximum Speed

This rating is to be considered independent of torque and power requirements, and is the maximum speed at which the Dynamometer can be safely run under free run or lightly loaded conditions. It is not to be considered as the maximum speed at which full braking torque can be applied.

Maximum Power Ratings

These ratings represent the maximum capability of the Dynamometer Braking System to absorb and dissipate heat generated when applying a braking load to the motor under test. The power absorbed and the heat generated by the Dynamometer is a function of the Torque (T) applied to the motor under test, and the resulting speed (n) of the motor. This is expressed in these power (P) formulas:

SI:P (watts)=T (N·m)xn (rpm)x(1.047 × 10-1)
English:P (watts)=T (lb·in)xn (rpm)x(1.183 × 10-2)
Metric:P (watts)=T (kg·cm)xn (rpm)x(1.027 × 10-2)
All of Magtrol's controllers, readouts and software calculate horsepower
as defined by 1 hp = 550 lb·ft / s. Using this definition:
hp=P (watts)/745.7
To calculate power, use Magtrol's online motor power calculator

The Dynamometer’s ability to dissipate heat is a function of how long a load will be applied. For this reason, the Maximum Power ratings given are based on continuous operation under load, as well as a maximum of 5 minutes under load.

To safely dissipate heat and avoid Dynamometer failure, the maximum power rating
is the most important consideration in selecting a Dynamometer.
