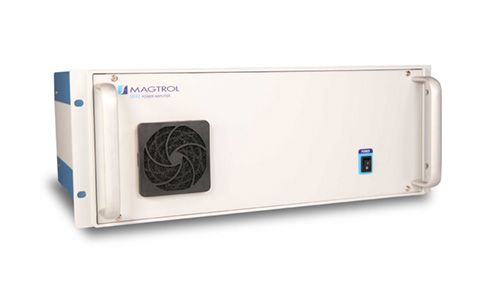

The Model 5242 is a voltage-controlled power amplifier designed exclusively for Magtrol’s Model HD‑825 Hysteresis Dynamometer. Because of its double braking system, the HD‑825 requires more than 4 amps of power in order to reach full torque. The 5242 (which can provide up to 5 amps of output current) is necessary in order to amplify the power between the DSP7010 Controller (which has a maximum current output of 1 amp) and the HD-825 Dynamometer.
| Current Output | 0 to 5 A DC |
| Control Input | 0 to +3 V DC or 0 to -10 V DC |
| Fuses (5×20 mm) | Brake: UL/CSA IEC 6.3A 5A 125 250 VSB VT Power (120 V): UL/CSA 3A 250 VSB Power (240 V): IEC 1.25A 250 VT |
| Power Requirements | 330 VA |
| Voltage Requirements | 120/240 V 60/50 Hz |
If the HD-825 is purchased without a dynamometer controller, please inform Magtrol of your controller model—as it may be necessary to modify your existing controller so that it functions properly with the 5242 Power Amplifier.
