Motor Test Equipment
-
View ProductRead moreMicro Dyne System
Finally… a Micro Dyne system designed specifically for your micro motors! With over 50 years’ experience in dynamometer design and torque measurement, Magtrol has revolutionized the industry. Magtrol’s new Micro Dyne, capable of measuring extremely low torques (2.0 mN·m can be resolved to 0.0004 mN·m), is designed exclusively for testing miniature and micro motors. For… Read more »
-
View ProductRead moreWB 23 and WB 27 – High-Speed Eddy-Current Dynamometers
Magtrol’s WB 23 and WB 27 Eddy-Current Dynamometers are designed for very high-speed motors and dental or surgical tool testing applications. By providing a braking torque that is proportional to the rotational speed, rated torque is reached at the rated speed. The Dynamometer features a low level of inertia, due to small rotor dimensions, and… Read more »
-
View ProductRead moreWB 32 Series – High-Speed Eddy-Current Dynamometers
FEATURES 2 Models with maximum Torque: 400 mN·m & 800 mN·m Speed: up to 80 000 rpm Power: 0.5 kW & 1 kW Low Moment of Inertia Stable & smooth Braking Torque Data acquisition via DSP 7010 Series Controller & M-TEST Software Built-in Electronics with Torque & Speed Measurement and Excitation Supply DESCRIPTION Magtrol’s WB 32 Series –… Read more »
-
View ProductRead morePB Series – Powder Brake Dynamometers
The Powder Brake Dynamometer (PB Series) contains, as its name suggests, a magnetic powder. The electrical current passing through the coil generates a magnetic field, which changes the property of the powder, thus producing a smooth braking torque through friction. They are ideal for applications operating in the low to middle speed range or when… Read more »
-
View ProductRead moreTandem Series – In-Line Double Dynamometers
Eddy-current Brake Dynamometers (WB series) provide increasing torque as the speed increases, reaching peak torque at rated speed. They are ideal for applications requiring high speeds and also when operating in the middle to high power range. Powder Brake Dynamometers (PB Series) provide full torque at zero speed and are ideal for applications operating in… Read more »
-
View ProductRead moreMSD System – Mega Speed Dynamometer
The MSD – Mega Speed Dynamometer was developed for the testing of very high speed motors such as BLDC, Dental Handpieces, Air Turbines and Surgical Tools. The braking effect is based on Eddy-Current induced on an aluminum disc directly mounted on the DUT (Device Under Test) shaft. Torque is measured frictionless by a Reaction Torque… Read more »
-
View ProductRead more4 Quadrant Dynamometer Test System
Magtrol’s 4 quadrant motorized dynamometers provides expanded testing flexibility over a typical braking dynamometer. With the ability to bring the motor under test (MUT) to synchronous RPM before beginning a test, repeatability is improved. Since the motor windings are at ambient temperature before starting a ramp test, wattage is more consistent. Custom Software is required… Read more »
-
View ProductRead moreED Series – Engine Dynamometers
With a Magtrol Engine Dynamometer, high performance motor testing is available to manufacturers and users of small gas engines. Magtrol’s Engine Dynamometers have been designed to address the severe, high vibration conditions inherent in internal combustion engine testing. Engine Dynamometers are part of Magtrol’s line of Hysteresis Dynamometers so they are highly accurate (± 0.25%… Read more »
-
View ProductRead moreDial Weight Dynamometers
The most important characteristic of any measurement instrument is repeatability and accuracy. The Magtrol Dial Weight Dynamometer uses the combination of a Hysteresis Brake and gravity to insure constant, reliable results. The brake torque rise is directly proportional to applied current. The calibrated weight system provides readings in standard engineering units through the use of… Read more »
-
View ProductRead moreCustom Motor Test Systems

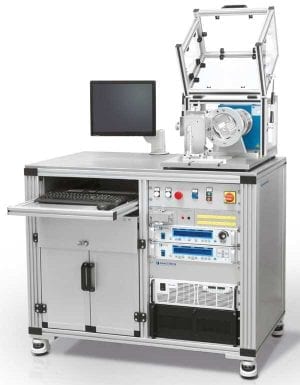

Magtrol’s Customized Motor Test Systems (CMTS) are PC-based, turnkey systems custom designed and built to meet your specific motor testing requirements. By integrating Magtrol’s motor test equipment with power supplies, adaptable fixtures, custom tables/cabinets, printers, etc., Magtrol’s engineering team can design and build a system that precisely suits the customer’s needs. A Magtrol CMTS may… Read more »
-
View ProductRead moreDSP7000 – High Speed Programmable Controller
Magtrol’s Model DSP7000 High-Speed Programmable. Dynamometer Controller employs state-of-the-art Digital Signal Processing Technology to provide superior motor testing capabilities. Designed for use with any Magtrol Hysteresis, Eddy-Current or Powder Brake Dynamometer, Magtrol In-Line Torque Transducer or auxiliary instrumentation, the DSP7000 can provide complete PC control via IEEE-488 or RS-232 interface. With up to 500 readings… Read more »
-
View ProductRead moreDES Series – Power Supplies
DES Series Power Supplies are specially designed for the full range of Magtrol’s Eddy-current and Powder brake dynamometers with the design goal providing the best response time. The DES Series supplies are packaged in an industrial housing made of cast aluminum. This offers superior protection against radiated emissions in order to avoid any disruption of… Read more »
-
View ProductRead moreDynamometer Tables
Test from a stationary position or move a dynamometer to alternate testing stations with ease with Magtrol’s Dynamometer Table. The stand is designed from lightweight aluminum with casters for smooth mobility, and is sturdy enough to support even the heaviest of Magtrol dynamometers. The design can be retrofitted to any Magtrol dynamometer and is easily… Read more »
-
View ProductRead moreAMF Series – Adjustable Motor Fixtures
Magtrol’s AMF Series Adjustable Motor Fixtures are used to secure small to medium-sized motors in place while running any test. These extremely versatile fixtures also enable easy motor centering for coupling to a Magtrol HD Series Hysteresis Dynamometer. (Couplings can be supplied upon request.) Various motor lengths are accommodated by either an attached T-slotted base… Read more »
-
View ProductRead moreFMF Series – Fixed Motor Fixtures
Originally designed to test window lift gear motors, Magtrol’s FMF Series Fixed Motor Fixtures are used to secure motors in place while running any test. These versatile fixtures align the motor under test with Magtrol’s HD-100, HD-106, HD-400, HD-500, HD-700 and HD-800 Series Dynamometers for easy setup and coupling—couplings can be provided upon request. Various… Read more »
-
View ProductRead morePT Series – T-Slot Base Plates
PT Series T-slot Base Plates are used for creating a basic test rig by mounting a Magtrol Dynamometer and/or Torque Transducer in line with the unit to be tested. Its solid, warp-resistant structure and multiple, single-sided T-slots enable modular construction that is cost-effective and easy to assemble.
