AMF Series – Adjustable Motor Fixtures

Support & Downloads

Adjustable Motor Fixture

Product Description

Magtrol’s AMF Series Adjustable Motor Fixtures are used to secure small to medium-sized motors in place while running any test. These extremely versatile fixtures also enable easy motor centering for coupling to a Magtrol HD Series Hysteresis Dynamometer. (Couplings can be supplied upon request.) Various motor lengths are accommodated by either an attached T-slotted base plate or sliding base, depending on the model.

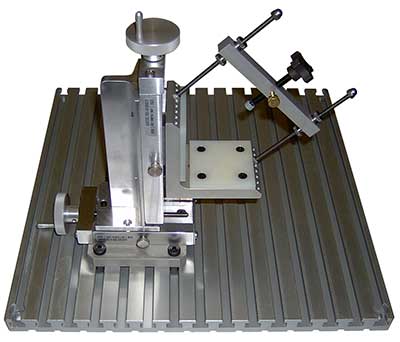

The AMF-1, -2 and -3 Fixtures feature one or two adjustable bridges, each fitted with a fluted knob clamp screw, to allow clamping anywhere along the axis of the motor. The adjustable bridge on the AMF-V Fixture incorporates a straight-line action clamp with a V-angle rubber padded clamp to maximize the mounting area.

To safeguard the motor, locking thumb screws provide protection against vibration and all motor-to-fixture contact surfaces are nylon padded for scratch-free clamping.

Features

  • Accommodate motors up to 8¼ inches in diameter
  • Used with most Magtrol HD Series Dynamometers
  • Secure anchoring system
  • Easy motor centering
  • Extremely versatile and adaptable
  • Vibration protection
  • Scratch-free clamping
  • Tool-free adjustment
  • Direct mounting to Magtrol TAB Series Dynamometer Table or dynamometer base plate (depending on model and system configuration)

Model Comparison and Drawings

 AMF-1AMF-2AMF-3AMF-V
Motor Diameterup to 4 inchesup to 6 inchesup to 8¼ inches4 to 8 inches
DynamometerHD-100, 400 and 500 Series with short base plate optionHD-700 Series with short base plate optionHD-800 Series with
T-slot base plate option
HD-800 Series with
T-slot base plate option
Fixture BaseT-slot base plateT-slot base platestandard base plateslider
Clamping Bridges1221
View/Download Detailed Drawing (printable PDF file)

Mounting Example

Magtrol HD-705-XXX-0100 Dynamometer with AMF-2 Adjustable Motor Fixture with 4-inch motor locked in place.
