Tandem Series – In-Line Double Dynamometers

Support & Downloads

Product BrochureProduct Datasheet

Product Description

Eddy-current Brake Dynamometers (WB series) provide increasing torque as the speed increases, reaching peak torque at rated speed. They are ideal for applications requiring high speeds and also when operating in the middle to high power range. Powder Brake Dynamometers (PB Series) provide full torque at zero speed and are ideal for applications operating in the low to middle speed range or when operating in the middle to high torque range.

Tandem Dynamometers are based on the combination of Eddy-current Dynamometers (WB series) and Powder Dynamometers (PB series) mounted in line on a common base and connected by an electromagnetic clutch. Both dynamometers are cooled by a water circulation system, which passes inside the stator to dissipate heat generated by the braking power, allowing a power rating up to 140 kW. Both WB and PB Dynamometers integrate a torque measurement system with accuracy ratings of ± 0.3 % to ± 0.5 % full scale, depending on size and system configuration.

Features

  • 13 Models with Maximum Torque from 5 N·m to 1 200 N·m (3.6 lb·ft·in to 885 lb·ft)
  • Braking Power: 3 kW to 140 kW
  • Stable Braking Torque, without Shock
  • Low Moment of Inertia
  • Operation in Either Rotational Direction
  • Braking Torque Measurement Integrated
  • Integrated Optical Speed Sensor
  • Special designs available upon request

Operating Principles

Because the characteristics of the WB and PB dynamometers are complementary, Magtrol is able to offer them mounted in a tandem setup. Each dynamometer (WB and PB) can autonomously operate according to its own characteristics (Please refer to specific data sheet). An electromagnetic clutch will automatically switch off at the maximum speed of the PB Powder Dynamometer and automatically switch on at zero speed. Once the system is running over the PB Powder Dynamometer speed limit, the clutch cannot be switched on until the system returns to 0 rpm (no longer rotating).

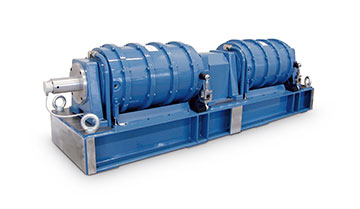

Double WB Dynamometer in Tandem Setup
For applications requiring higher power in a dedicated speed range, Magtrol offers some of the Eddy Current Dynamometers mounted in line on a common base. For example: models 2 WB 65 + 2 WB 65 (rated torque 40 N·m, max speed 24 000 rpm, max power 24 kW) or 2 WB 115 + 2 WB 115 (rated torque 200 N·m, max speed 15 000 rpm, max power 60 kW).

Optical Speed Sensor
Each TANDEM has an optical speed sensor delivered as standard. TANDEM 43 has an optical speed sensor with a 30-PPR encoder; TANDEM 65, TANDEM 115 & TANDEM 15 have an optical speed sensor with a 60-PPR encoder.

System Configuration

Specifications

NOTE: For continuous operating (≥ 2 hours) at constant torque or power, please consider 20% reserve in both torque & power

MODELRATED TORQUE
[N·m]		RATED TORQUE
[lb·ft]		RATED POWER
[kW]		RATED SPEED
[rpm]		MAX. SPEED
[rpm]		MAX. EXCITED
SPEED OF PB
[rpm] a)
2 WB 43 + 1 PB 4353.639 55025 0004 000
2 WB 43 + 2 PB 43107.339 55025 0004 000
2 WB 65 + 1 PB 652518.4125 73018 0003 000
2 WB 65 + 2 PB 655036.8125 73018 0003 000
2 WB 115 + 1 PB 11510073.7302 86515 0003 000
2 WB 115 + 2 PB 115200147.5302 86515 0003 000
2 WB 115 + 2 WB 115200147.5602 86515 0003 000
2 WB 15 + 1 PB 15300221702 3907 5002 000
2 WB 15 + 2 PB 15600442702 3907 5002 000
2 WB 15 + 4 PB 151 200885702 3907 5002 000
4 WB 15 + 1 PB 153002211402 3907 5002 000
4 WB 15 + 2 PB 156004421402 3907 5002 000
4 WB 15 + 4 PB 151 2008851402 3907 5002 000

a) Corresponds to the speed at which the clutch will be disconnected

Applications

Mounted on test benches, Tandem Dynamometers allow performance and reliability testing on driving elements such as electric motors, servomotors, geared motors, reduction gears, pneumatic equipment, hydraulic transmission systems and starter motors.

System Options

To help you select the components for your motor testing system, this table shows which (currently available) electronics and software support Magtrol’s different types of dynamometers.

ModelDescriptionHysteresis Dynamometers (including ED Series)Eddy-current DynamometersPowder Brake DynamometersDial Weight Dynamometers
DYNAMOMETER CONTROLLERS
DSP7010Dynamometer Controller•••
DSP7000High-Speed Programmable Dynamometer Controller•••
OTHER ELECTRONICS
TSC SeriesTorque/Speed Conditioner
5500Dynamometer Switch Box•
5501Dynamometer Switch Box••
5502Dynamometer Switch Box•
5503Dynamometer Switch Box••
SOFTWARE
M-TEST 7Motor Testing Software•••
POWER SUPPLIES
DES SeriesPower Supply••
5241Power AmplifierRequired for HD-825 Only
5242Power AmplifierRequired for HD-825 Only
5200Power Supply•
5210Current-Regulated Power Supply•
5250Current-Regulated Power Supply•
ACCESSORIES
TABDynamometer Tables••••
AMFAdjustable Motor Fixtures•
FMFFixed Motor Fixtures•
PTT-Slot Base Plate•••
FRSFree-Run Speed Sensor•••
SBB14Signal Breakout Box•••
SBB15Signal Breakout Box•••

Dynamometer Selection

Magtrol Dynamometers cover a wide range of Torque, Speed and Mechanical Power ratings. To select the appropriate size Dynamometer for your motor testing needs, you will need to determine the Maximum Torque, Speed and Power applied to the Dynamometer:

Maximum Torque

It is important to consider all torque points that are to be tested, not only rated torque, but also Locked Rotor and Breakdown Torque. Dynamometer selection should initially be based on the maximum torque requirement, subject to determining the maximum power requirements.

Maximum Speed

This rating is to be considered independent of torque and power requirements, and is the maximum speed at which the Dynamometer can be safely run under free run or lightly loaded conditions. It is not to be considered as the maximum speed at which full braking torque can be applied.

Maximum Power Ratings

These ratings represent the maximum capability of the Dynamometer Braking System to absorb and dissipate heat generated when applying a braking load to the motor under test. The power absorbed and the heat generated by the Dynamometer is a function of the Torque (T) applied to the motor under test, and the resulting speed (n) of the motor. This is expressed in these power (P) formulas:

SI:P (watts)=T (N·m)xn (rpm)x(1.047 × 10-1)
English:P (watts)=T (lb·in)xn (rpm)x(1.183 × 10-2)
Metric:P (watts)=T (kg·cm)xn (rpm)x(1.027 × 10-2)
All of Magtrol's controllers, readouts and software calculate horsepower
as defined by 1 hp = 550 lb·ft / s. Using this definition:
hp=P (watts)/745.7
To calculate power, use Magtrol's online motor power calculator

The Dynamometer’s ability to dissipate heat is a function of how long a load will be applied. For this reason, the Maximum Power ratings given are based on continuous operation under load, as well as a maximum of 5 minutes under load.

To safely dissipate heat and avoid Dynamometer failure, the maximum power rating
is the most important consideration in selecting a Dynamometer.
