5502/5503 – Manual Dynamometer Switch Box
Description du produit

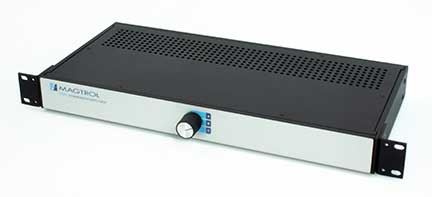

Magtrol Models 5502 and 5503 are manually-operated switch boxes that permit the connection of up to three Magtrol Dynamometers to a single Dynamometer Controller. Use of the switch boxes facilitates quick and easy interfacing to multiple dynamometers without the need to disconnect and reconnect the brake and control cables. For Magtrol WB Eddy-current or PB Powder Brake Dynamometers, BOTH a 5502 AND a 5503 Switch Box are necessary. Magtrol HD or ED Hysteresis Dynamometers only require the 5502.
