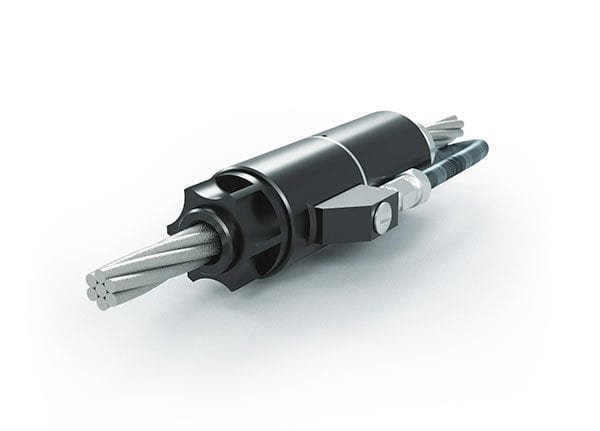

The SG-01 cable sensor is designed for providing load monitoring of permanent and temporary anchors and allows continuous measuring either by a direct or remote control system.
The specific design allows the use of a SG-01 sensor in harsh, tropical or harbor environments.
| MECHANICAL CHARACTERISTICS | |
| Nominal Load (NL) | 160 kN |
| Admissible Overload (% of NL) | 150 % |
| Overload Limit | 300 kN (sensing part alone) |
| ENVIRONMENT | |
| Nominal Temperature | - 10 °C to + 70 °C |
| Operating Temperature Range | - 40 °C to + 80 °C |
| Protection class | IP 67 |
| Temperature Influence on Zero | ≤ ± 0.01 % / K |
| Temperature Influence on Sensitivity | ≤ ± 0.01 % / K |
| Compensation of the Zero | between - 5 °C to + 60 °C |
| ELECTRICAL CHARACTERISTICS & CONNECTION | |
| Nominal Sensitivity | 1.2 mV/V |
| Supply Voltage | max. 10 VDC |
| Connection Cable Assembly | Integrated 1.5 m cable with connector + extension cable 0.5 m + counter-connector |
The SG-01 is particularly suitable for bridge strand and stay
cable permanent mounting under hostile environmental conditions.
It is the perfect transducer to monitor rope tension in a wide
range of applications
