Load Monitoring Units (LMUs)

LMU 217

Product Description

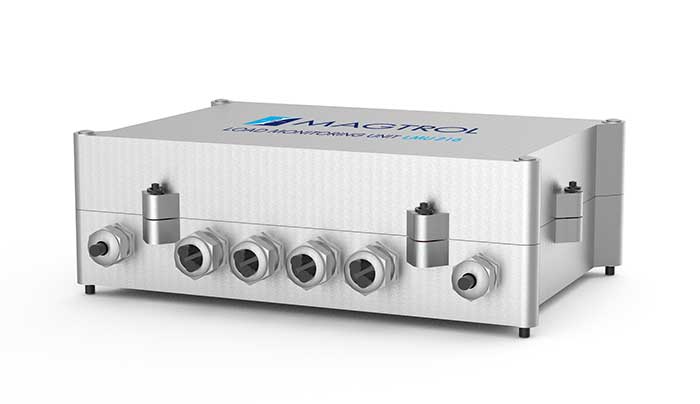

Magtrol’s Load Monitoring Units are used for measuring load, force and weight from signals generated by strain gauge transducers. Specifically designed for use with Magtrol’s Load Measuring Pins and Load-Force-Weight Sensors, the LMU Series provides excitation voltage while conditioning the bridge output signal. Each unit contains DIP-switches and jumpers for greater flexibility and complete adaptability. User-defined alarm limits can be programmed into the unit, which when combined with our sensors, provides a safe and rugged measurement system that continuously monitors for short-circuits and interrupted signal lines. Magtrol LMUs are specially designed for use in harsh environments and are suitable for crane security systems.

Supporting Electronics

Large Remote Displays

If a large display is required a GAD Series Remote Display (with heights ranging from 57 to 400 mm) can be used in combination with any Magtrol LMU unit.

Junction Boxes

Up to 4 LB Load Measuring Pins (full-bridge strain gauges) can be connected in parallel to the LMU Load Monitoring Unit, using a JB 113 (2 load pins in parallel) or JB 114 (4 load pins in parallel) junction box.

Model Comparison

Transducer Inputs 1 1 2 1
Voltage Output 1 × 0–10 V 1 × 0–10 V 2 × 0–10 V 3 × 0–10 V
Current Output 1 × 0/4–20 mA 1 × 0–20 mA or 4–20 mA 2 × 0–20 mA or 4–20 mA 1 × 0–20 mA or 4–20 mA
Relays 0 2 4 4
Summation 0 2 3 4
Power Supply 18...28 VDC /
70 mA
115–230 VAC (50–60 Hz)
20–32 VDC
48 VAC
115–230 VAC (50–60 Hz)
20–32 VDC
48 VAC
115–230 VAC (50–60 Hz)
20–32 VDC
48 VAC
Housing PC-F, UL 94V-0
Aluminum (option)
Aluminum Aluminum Aluminum
Protection Class IP52 or
IP65 (option)
IP65 IP65 IP65

LMU 110

Magtrol’s LMU 110 Load Monitoring Unit is a 4-channel bridge amplifier with 4–20 mA DC current output. With 4 independent inputs and outputs, the LMU 110’s sensitivity and offset are adjusted at the factory according to the transducer type and its application.
