Product Description

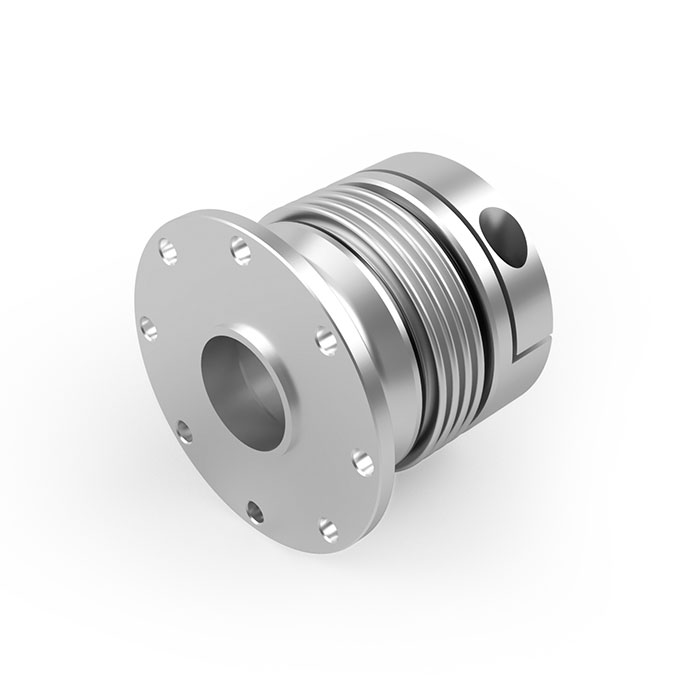

BKC-TF Series Metal Bellows Couplings provide the ideal complement to Magtrol’s TF Series Torque Flange Sensors, when mounted in a drive train.
The torque transmission element consists of a metal bellows, clamping hubs for shaft ends and a flange element to connect with the TF Sensor. The couplings are both torsionally stiff and flexible in order to compensate for axial, angular and radial misalignment. The high torsional spring rate of the couplings ensures a high torsional stiffness and angular precision.
Design & Material
Bellows are made of highly flexible high-grade stainless steel. The hub material is made of aluminum stainless steel.
Use of an ISO 4762 radial clamping screw is required for clamping.
Specifications
Model | BKC-TF 60 | BKC-TF 150 | BKC-TF 800 | BKC-TF 1500 |
---|
RATINGS |
Rated Torque [N·m] | 100 | 200 | 1 000 | 2 000 |
Maximum Torque [N·m] a) | 200 | 400 | 2 000 | 4 000 |
Maximum Speed G 6.3 [rpm] or [min-1] | 10 000 | 6 000 | 4 500 | 3 000 |
Maximum Speed G 2.5 [rpm] or [min-1] | 17 000 | 13 000 | 10 000 |
MISALIGNMENT |
Axial [mm] | 1.5 | 2 | 2.5 |
Radial [mm] | 0.2 | 0.15 |
Angular [°] | 1 |
STIFFNESS & INERTIA |
Torsional Stiffness [N·m/rad] | 9.31 x 104 | 4.02 x 105 | 1.94 x 106 | 5.40 x 106 |
Moment of Inertia [kg·m2] x 10-3 | 0.534 | 1.28 | 12.7 | 78.33 |
MECHANICAL CHARACTERISTICS & ENVIRONMENT |
Temperature Range [°] | -30 ... +100 |
Diameter Range Ø[mm]H7 b) | 14...35 | 19...42 | 40...75 | 50...80 |
Hub Material | Aluminum | Stainless Steel |
Keyway c) | No | Yes |
Approximate Weight [kg] | 0.7 | 1.0 | 6.3 | 10.0 |
a) Peak torque acceptable, only with keyway DIN 6885 (optional)
b) The standard versions are manufactured with integer values; the standard tolerance is H7. All diameters and tolerances are possible, within the defined max. range. Please contact our sales department.
c) The standard versions are manufactured with integer values; the standard tolerance is H7. All diameters and tolerances are possible, within the defined max. range. Please contact our sales department.
