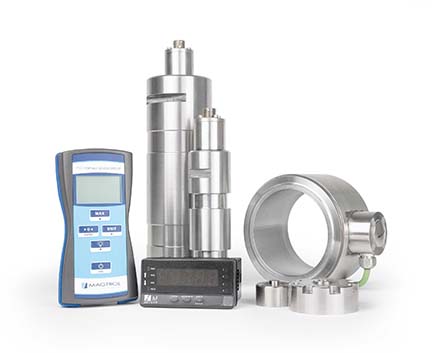

Load-Force-Weight Systems
- View ProductRead more

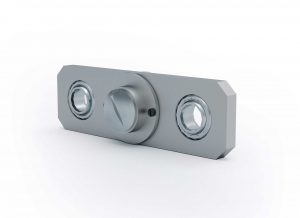

ZL-03 – Traction Force Transducer
The Magtrol ZL-03 Traction Force Transducer utilizes Strain Gauge Technology and was designed to support the load for long-term dynamic stresses. Connected to a signal conditioner, the transducer will provide signal proportional to the measured load.
- View ProductRead more

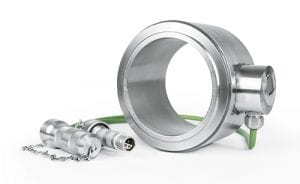

HRL Series – Anchor Load Cell
HRL Series load cells consist of a high quality stainless steel. This compact load cell is designed specifically for heavy duty use on construction sites and include load cells with a range of 600 … 3 000 kN. Special designs are available upon request. The attached shielded cable includes a water-proof connector with cap. Versions… Read more »
- View ProductRead more
LB 200 Series – Load Measuring Pins
LB 200 Series Load Measuring Pins can be used alone or as part of a complete measurement system. Magtrol offers a wide range of Load-Force-Weight Transducers in various executions and accuracy classes and our Load Monitoring Units (LMUs) constitute an ideal safe measurement system which continuously checks for overloads and short circuits. MAGTROL Load Measuring… Read more »
- View ProductRead more

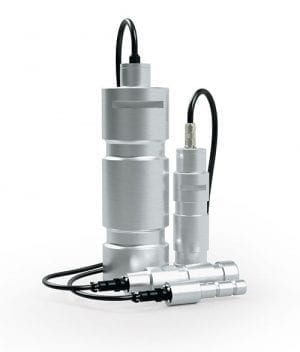

LE Series – Load Measuring Pins
MAGTROL offers a wide range of Load-Force-Weight Transducers with optional integrated electronics or Load Monitoring Units (LMU) with B.I.T.E. functions creating an ideal measurement system which continuously checks for overloads and short circuits. Idealy for use on Safety Applications according to ECE-R10, ISO 13849-1 : CAT4 & PLe (LE 600 Series); ISO 13849-1 : CAT2… Read more »
- View ProductRead more

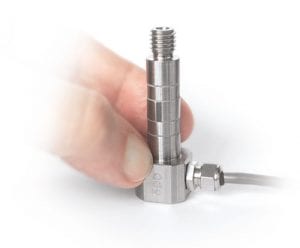

MB 102 Series – Miniature Load Measuring Pins
Magtrol Miniature Load Measuring Pins are used to measure load and force and provide overload protection. The pins are mounted into machines in place of normal shafts and fitted with strain gauges, allowing them to produce a signal proportional to the measured load. Manufactured in Switzerland, Magtrol’s MB 102 Series Miniature Load Pins are rugged… Read more »
- View ProductRead more
LMU Series – Load Monitoring Units
The Magtrol Load Monitoring Unit is specially designed for strain gauge transducer applications. Specifically developed for use with Magtrol load measuring pins and load-force weight sensors, the LMU Series provides excitation current and amplifies the output signal of full-bridge strain gauges. Load Monitoring Units are flexible and fully configurable due to DIP-switches and jumpers which… Read more »
- View ProductRead more
AN Series – Load Monitor, Signal Conditioner & Display
Magtrol’s AN Series Load Monitor, Signal Conditioner & Display are used for processing and displaying measurements from signals generated by transducers (weight, load, pressure, torque, etc.) that use standard strain-gauge bridges, such as Magtrol’s Load Measuring Pins LB Series(), Miniature Load Pins MB-02 Series() or any Custom Sensors based on strain gauge technology. The AN… Read more »
- View ProductRead more
GAD Series – Large Remote Digital Displays
These high quality, large character digital displays can be used for crane weight display, process weight display, and all other remote weighing applications. They use microprocessor based technology for high reliability and have a non-volatile memory to store all the calibration data. Load-Force-Weight Systems Magtrol Large Digital Displays are used with Load Monitoring Units (LMUs)… Read more »
- View ProductRead more
PSD – Portable Sensor Display
- View ProductRead more

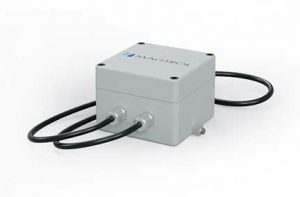

JB Series – Junction Boxes
The JB Series Junction Box from Magtrol are designed for connecting 1 to 4 strain gauge sensors to a Load Measuring Unit (e.g. LMU 210 Series). This element fits perfectly into a load measurement system and is specially designed to withstand hostile environments according to the same criteria as the LMU 210 Series.
