HRL Series – Anchor Load Cell

Product Description

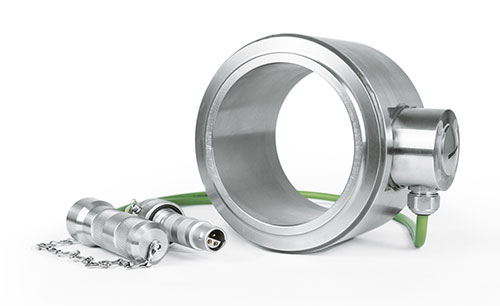

HRL Series load cells consist of a high quality stainless steel. This compact load cell is designed specifically for heavy duty use on construction sites and include load cells with a range of 600 … 3 000 kN. Special designs are available upon request. The attached shielded cable includes a water-proof connector with cap. Versions without the connector are available as an option. Cable lengths are customizable according to the installation requirements; for further information please contact us. The data collected from the strain gauge is proportional to the applied force. The signal is transmitted to the monitoring unit for amplification.

Features

  • Monitors anchor forces and other force measurements
  • Range: 600 … 3 000 kN
  • Admissible overload: 120 % of the nominal load
  • Maximum load: 300 % of the nominal load
  • Suitable for heavy-duty use on construction sites
  • Easy to assemble
  • Protection class: IP 66
  • Special designs available upon request
  • Optional: Lightning and Surge Protection

Specifications

MODELHRL-4-1000HRL-7-1500HRL-12-2000HRL-19-3000
MECHANICAL CHARACTERISTICS
Number of strands471219
Nominal Load600 kN1 000 kN1 700 kN2 700 kN
Admissible Overload (% of NL)120 %
Overload at Rupture (% of NL)250 %
Accuracy Class1 % (of NL) a)
ELECTRICAL CHARACTERISTICS
Nominal Sensitivity1.98 mV/V ± 1%2.2 mV/V ± 1%1.8 mV/V ± 1%1.91 mV/V ± 1%
Input Resistance700 - 1100 Ω
Output Resistance700 Ω
Nominal Supply Voltage of Strain Bridge5 V to 10 V
Combined Error (Non-linearity + Hysteresis)1 %
ENVIRONMENT & ELECTRICAL CONNECTION
Reference Temperature+23 °C
Operating Temperature- 30 °C to + 70 °C
Temperature Influence: On Zero≤ ± 0.01 % / K
Temperature Influence: On Sensitivity≤ ± 0.01 % / K
Protection ClassIP 66
Option: Lightning and Surge Protectionup to 20 kA (8 / 20 μs)
ConnectionIntegrated cable with LEMO connector
(several cable lengths are available on request)

a) Accuracy depends on the environment, the assembly and the quality of the supports.

Applications

Magtrol HRL Series Load Cells can be used to monitor anchor forces in classical and pre-stressed structures on sites (civil engineering, tunnels…) as well as a range of other static or dynamic measurements, in harsh, tropical, offshore, marine and harbour environments.
