Bancs personnalisés pour test moteurs

Product Description

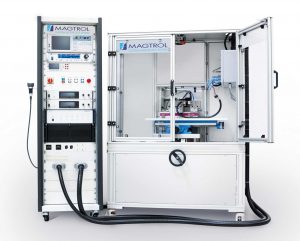

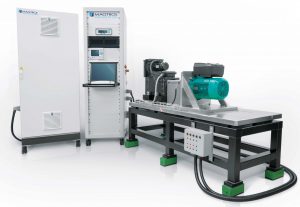

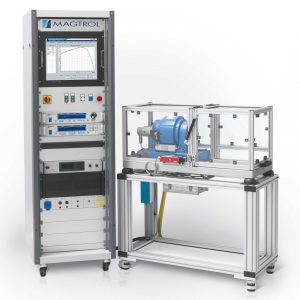

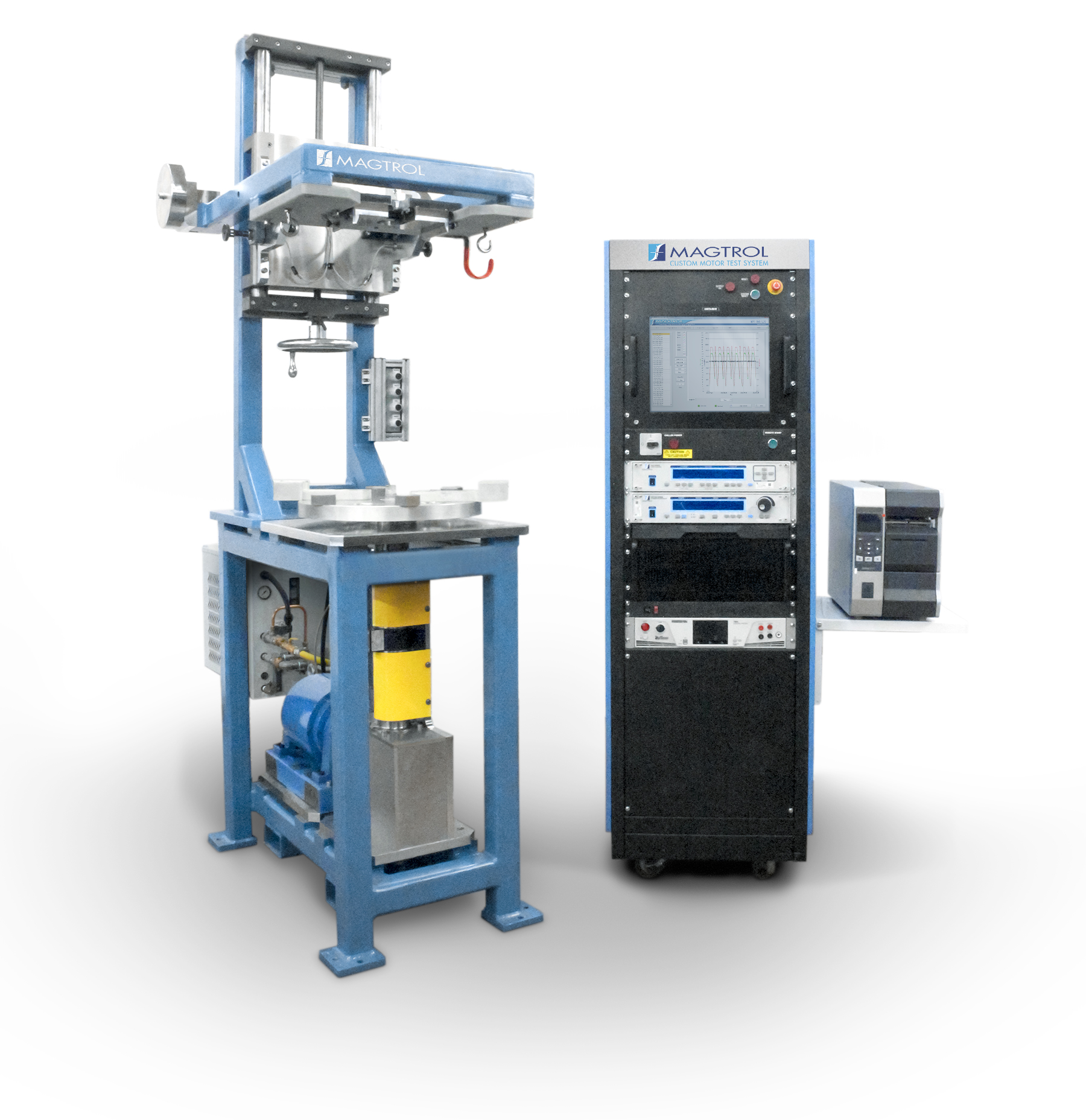

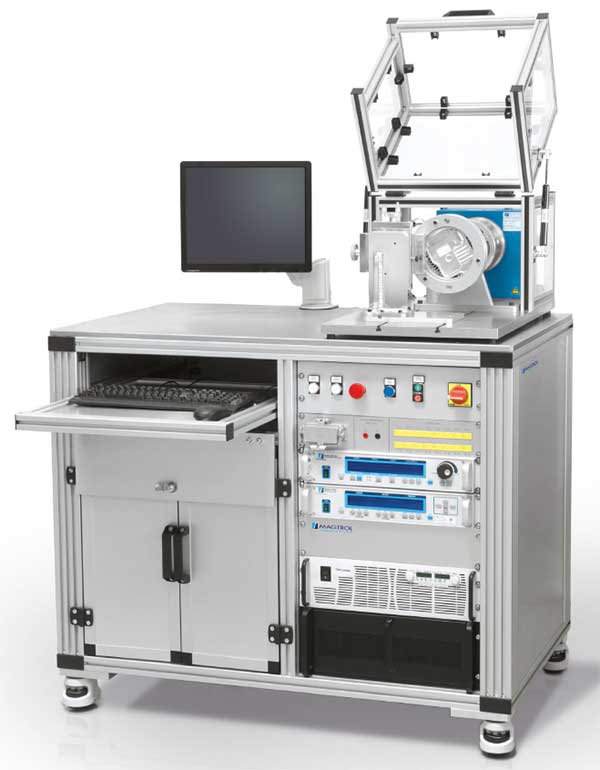

Les systèmes d’essai moteur (CMTS) MAGTROL sont des systèmes clés en main personnalisé, conçus et construits pour répondre à vos exigences spécifiques en tests moteurs. En intégrant l’équipement Magtrol de tests moteurs avec les alimentations, les accessoires et autres périphériques, l’équipe d’ingénierie Magtrol réalisera des systèmes clé en main ainsi que des bancs de test modulaires pour presque toutes les applications de test moteur.



Un CMTS Magtrol peut contenir les composants suivants:

  • un ou plusieurs freins dynamométriques
  • contrôleur des freins dynamométriques
  • Analyseur de puissances
  • Logiciel M-TEST
  • Alimentation moteur(AC et/ou DC)
  • ordinateur et imprimante
  • cartes GPIB et câbles
  • Banc de test personnalisé, Table ou armoire
  • Fixations pour petits moteurs
  • Accouplements
  • Mesure de température sur plusieurs points
  • Système de refroidissement
  • prestations sur site: mise en service et formation technique

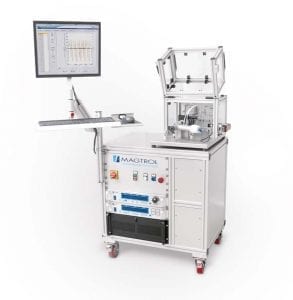

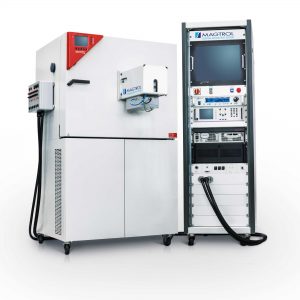

Applications pour systèmes de test moteur personnalisés

Selection

There are four key items that need to be addressed in selecting the proper motor test system:

  • What type of motors are to be tested?
  • What is the maximum Torque, Speed and Power of the motors?
  • What motor test parameters do you need to test?
  • How do you plan to control the Dynamometer and collect motor test data?

What type of motors are to be tested?

Magtrol Dynamometers are used for testing virtually all types of electric, hydraulic and pneumatic motors, as well as internal combustion gas engines.

What is the maximum Torque, Speed and Power of the motor under test?

Magtrol Dynamometers are rated in three parameters: Torque, Speed and Power.

What motor test parameters do you need to test?

Magtrol Dynamometers provide torque and speed data. Using a Magtrol DSP7000 Dynamometer Controller or Model 6200, mechanical power (in horsepower or watts) is also computed and displayed. The Magtrol Dynamometer Controller also contains an analog input which accepts any 0-5 VDC transducer. The transducer can be used to measure another parameter such as pressure, air flow, noise or a single temperature point.

f motor electrical input power is to be measured, Magtrol offers Single and Three-Phase Power Analyzers. The Power Analyzer option allows for capturing Volts, Amps, Watts and Power Factor.

A Power Analyzer is a required component in a test system measuring motor efficiency.

Magtrol also offers multichannel temperature testing hardware and software. Magtrol can also provide additional parameter testing via customized data acquisition hardware and software.

How do you plan to control the dynamometer and collect motor test data?

Magtrol offers both open-loop manual test systems, and PC based closed-loop test systems.
The open loop system requires motor test data to be acquired manually. A typical open loop system will consist of a Dynamometer and a Magtrol 6200 Open Loop Controller. A Magtrol Single or Three-Phase Power Analyzer can be included as an option. An open loop system is often used for quick pass/fail testing on the production line or at incoming inspection. Magtrol’s 6200 Dynamometer Controller provides pass/fail testing as a standard feature.

In a closed-loop motor test system, data is collected on a PC using Magtrol’s M-TEST Software, a Programmable Dynamometer Controller, and requisite interface cards and cables. A single or three-phase power analyzer can be integrated into this system, as well as Magtrol’s Temperature Testing Hardware and Software. Closed-loop systems are often used in R&D and test lab applications. Closed-loop systems are also used for production line and inspection purposes, especially when automatic data collection is required.

Note: A basic closed loop system would include a dynamometer, programmable dynamometer controller and motor testing software. A comprehensive system would also include a power analyzer, temperature testing software/hardware.

Datasheets

ModelProduct DescriptionDatasheet
CMTSTesting Aerospace Motors
CMTSTesting Aircraft Tachometers
CMTSTesting Appliance Motors

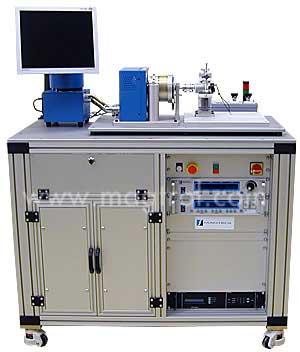

CMTSTesting Hardtop Convertible Motors
CMTSTesting Aircraft Motors
CMTSTesting Electric Pump Motors
CMTSTesting Low RPM Motors
CMTSTesting Steam Turbine Engines
CMTSTesting HVAC/Pump Motors
CMTSTesting Small DC Motors

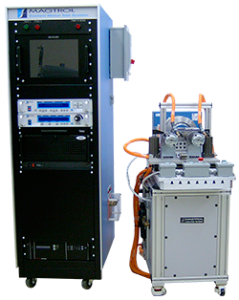

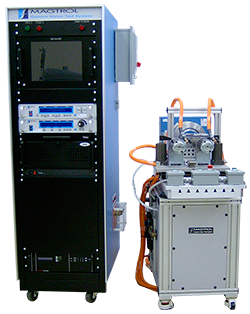

CMTSTesting Starter Motors (with front plug-in panel)
CMTSTesting Starter Motors (continuous testing)
CMTSTesting ABS Motors
CMTSTesting Wiper Motors
CMTSTesting Forklift Steering Drives
CMTSTesting Hot Tub/Spa Pumps and Blowers
CMTSThrottle Control System
CMTSTesting Linear Reducers
CMTSTesting Drum Motors
CMTSTesting Gear Motors
CMTSMulti-Motor Test System
CMTSMega Speed Dynamometer
CMTSMotorized Test System

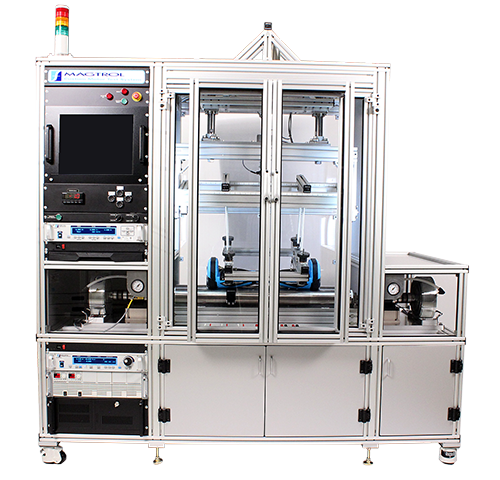

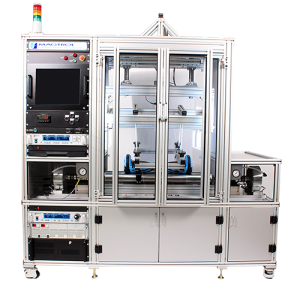

CMTSMulti Station Durability Test System
CMTS4 Quadrant Dynamometer Test System
CMTSAutomotive Gearmotor Test System
CMTSAerospace Motor Test System
CMTSPower Tool Motor Test System

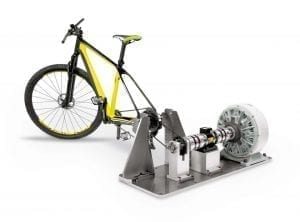

CMTSElectronic Personal Transportation Devices
