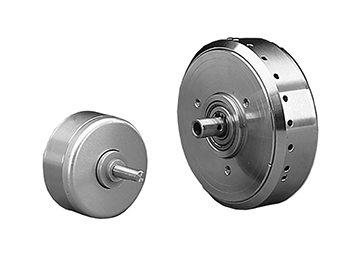

HPM/HPMC Series – Permanent Magnet Brakes and Clutches

Support & Downloads

Product BrochureProduct Datasheet
Permanent magnet

Product Description

Magtrol Hysteresis Permanent Magnet Brakes and Clutches are ideal in applications where electrical power cannot be provided to a brake or clutch coil. While best suited to applications where fixed torque is to be applied, adjustable units can be made specifically tailored to the application. Typically provided as brake units, with the addition of an input shaft, the same unit can be used as a clutch. In a clutch application, the pole/case member becomes the drive element, and the rotor/shaft assembly becomes the driven element of the clutch with torque being transmitted through the magnetic air-gap. Magtrol Hysteresis Permanent Magnet devices provide all the superior operating characteristics of smooth operation, precise repeatability and long life inherent in our standard Hysteresis Brakes and Clutches.

Specifications and Drawings

For complete technical specifications and a general dimension drawing, download the data sheet. For detailed dimension drawings. Click on the PDF icon in the table below and a PDF document will open in a new window. (Adobe Acrobat Reader 7.0, or later, is required.)

Brake
Model		Clutch
Model		Rated
Torque*
(oz·in)		Maximum
Speed**
(rpm)		Kinetic Power-5 minutes(w)Kinetic Power-Continuous(w)Downloads
HPM-2.5HPMC-2.52.510,820207brake pdf | clutch pdf | step
HPM-8HPMC-8810,1406015brake pdf | clutch pdf | step
HPM-16HPMC-16166,3407520brake pdf | clutch pdf | step
HPM-32HPMC-32323,8009025brake pdf | clutch pdf | step
HPM-120HPMC-1201203,38030075brake pdf | clutch pdf | step
HPM-210HPMC-2102102,900450110brake pdf | clutch pdf | step

* Permanent Magnet Brakes can be charged at factory to produce lower torque if desired. ** Listed speed rating will produce 5-minute kinetic power rating at rated torque.
