Product Description

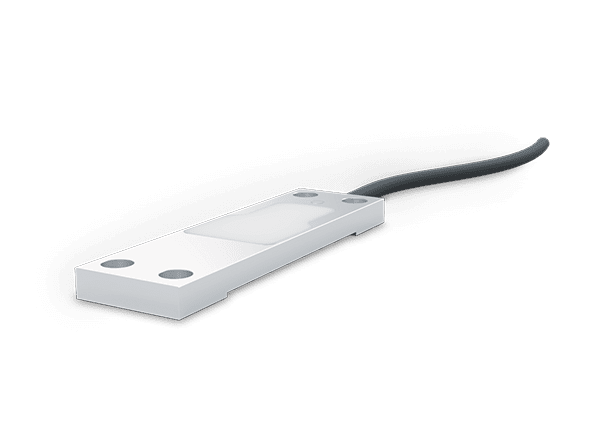

The Magtrol KG-06 Extensometer is designed for measuring deformations of construction or machined parts under load. Because its output signal is proportional to the applied load, it can be used as either a load cell or a force transducer.

Features

  • Transducer with Strain Gauge technology
  • Impedance 1000
  • Temperature-Compensated
  • Protection Class IP 65
  • Compact Dimensions (6.5mm height)
  • Robust Design
  • Very Flat Construction
  • Easy mounting on machined flat surface
  • Maintenance-free

Specifications

MEASUREMENT
Nominal Traction & Compression
Deformation (Ɛ)
0 ... 250 μm/m
ELECTRICAL CHARACTERISTICS
Nominal Sensitivity+ 0.5 mV / V a)
Output Impedance1000 Ω (± 10 Ω)
MECHANICAL CHARACTERISTICS
Maximal Usable Load150 % of Final Value
MaterialSteel
ENVIRONMENT
Temperature CompensationFor steel with α = 12 · 10-6 as standard
Operating temperature- 10 °C ... + 65 °C
Protection classIP 65

a) Units calibrated with tolerance of ± 2 % upon request

Applications

The KG-06 Extensometer is ideal for strain measuring where large transducers are not suitable. Its small dimensions and flat mounting allow for easy control of deformations on steel structures.
