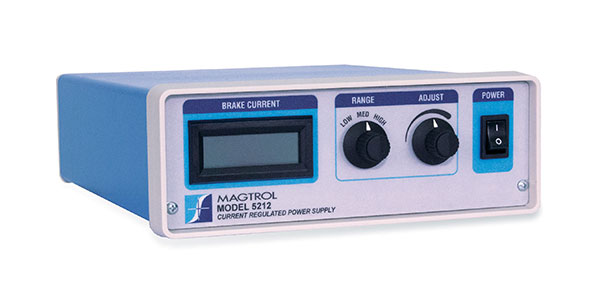

5212 – Current Regulated Power Supply

Support & Downloads

Product ManualProduct Datasheet

Description du produit

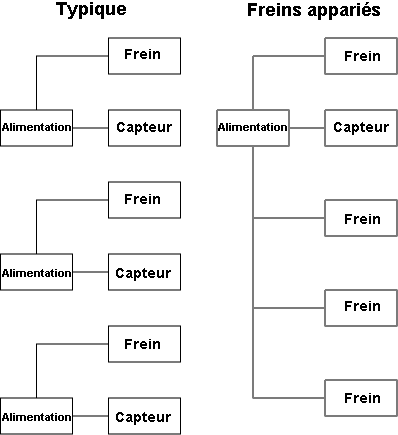

The 5212 is a 0-1A current-regulated 24 VDC power supply and display that is designed for use with Magtrol’s hysteresis brakes and clutches. It features a 10-turn current adjustment potentiometer and 3 selectable current ranges: 200 mA, 500 mA, and 1000 mA. A convenient built in panel meter displays the value of output current.

The 5212 is designed as a closed-loop power supply to provide smooth application of current throughout an entire range up to a maximum set point. By utilizing regulated current, fluctuations in brake torque caused by temperature changes within the brake coil are eliminated. Braking current can be controlled manually from the front panel using the 10-turn potentiometer. Alternatively, if remote operation is required, the 5212 can be controlled by an external source using the 0-5 VDC control input located on the rear panel.

Specifications

Brake Voltage 24 VDC
Current Ranges 0-200 mA, 0-500 mA, 0-1000 mA
Current Regulation ±1% Full Scale
Braking Control 10-Turn Potentiometer (front panel) or
0-5 VDC External Control (back panel)
Line Fuse
(5 x 20 mm)		 5212-2: 120 V IEC 1.0 A 250 V T
5212-2A: 240 V IEC 0.4 A 250 V T
Brake Fuse
(5 x 20 mm)		 IEC 1.25 A 250 V T
Power
Requirements		 70 VA
Voltage
Requirements		 120/240 VAC 50/60 HZ
External Control
Impedance		 1 M Ohms

Dimensions

Width 7.50 in 190 mm
Depth 9.75 in 245 mm
Height 2.75 in 69 mm
