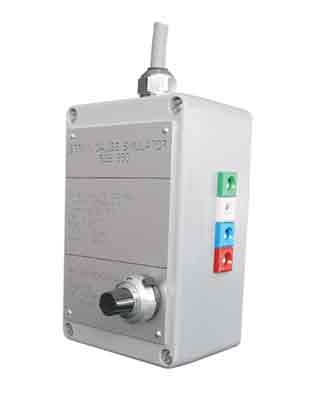

The Magtrol SGS-350 is a strain gauge bridge simulator made entirely with passive components and an aluminum housing designed for use in extremely harsh environments.
The SGS-350 can be used in place of a strain gauge sensor with 0 … 2 mV/V sensitivity, in order to test or calibrate an LMU 210 Series Load Monitoring Unit (or other model), including threshold overload testing.
The SGS-350 can be supplied with 5 … 10 V DC power supply.
Combined with an LMU 210 Series – Load Monitoring Unit, the strain gauge simulator allows operational tests and settings to be preformed prior to use on site.
Its aluminum housing provides the SGS-350 with reinforced protection and allows it to be used in particularly harsh environments.
The dual-channel version simulates sensor settings with redundant strain gauge bridges.
