Hysteresis Device Special Designs & Modifications
Product Description
Since 1953, Magtrol has created literally thousands of special and modified brake and clutch designs to help solve specific application problems for our customers.
Common Specials and Modifications Include:
- Non-Standard Coil Voltages
- Special Shaft Configurations: keyways, flats, holes, hollow
- Extended Shafts
- Forced Air Cooled Brakes
- Adjustable Permanent Magnet Brakes
- Speed Pickups
- Special Mounting Configurations
- Nonstandard Lead: material, lengths, location
- Higher Torque Devices
- High Speed Units

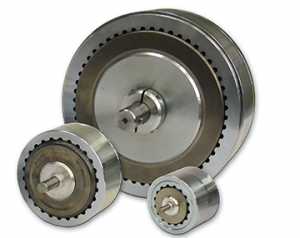

- Brake/Clutch Combinations
- Dust Covers
Specifications
Although intended for coupled service, moderate overhung loads can be tolerated, depending on such operating characteristics as speed, weight, and center of gravity of load. Care should be taken to make certain that the shaft is properly aligned. Couplings should be of proper size and flexibility to adequately protect bearings from undue stress and shock loading.

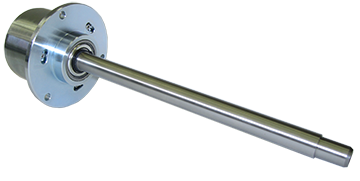

Extended Shafts
Higher Torque Capacity
It is Magtrol’s policy never to overstate the capabilities of our products. As a result, our brakes are conservatively rated. Higher torque values (15-25% above rated torque) are typically available from each brake, depending on the brake being ordered. In addition, special designs capable of producing even higher torques are available. Contact Magtrol for more information.
Mounting Options
Although intended for coupled service, moderate overhung loads can be tolerated, depending on such operating characteristics as speed, weight, and center of gravity of load. Care should be taken to make certain that the shaft is properly aligned. Couplings should be of proper size and flexibility to adequately protect bearings from undue stress and shock loading.
