HCF Series – Hysteresis Clutches

Support & Downloads

Product ManualProduct Datasheet
Clutches

Product Description

Like the Hysteresis Brake, the Magtrol Hysteresis Clutch develops torque strictly through a magnetic air-gap, ensuring an absolutely smooth transmission of torque from the drive unit to the driven element. Designed to be powered without the use of brushes or slip rings, and being a pure hysteresis device, there is never any fear of contamination due to wear particles or leaky seals. This makes Magtrol Hysteresis Clutches and Brakes ideal for use in food processing and clean room environments.

Specifications and Drawings

For complete technical specifications and a general dimension drawing, download the data sheet. For detailed dimension drawings. Click on the PDF icon in the table below and a PDF document will open in a new window. (Adobe Acrobat Reader 7.0, or later, is required.)

HCF Series

Hysteresis Clutch Model Minimum Torque at Rated Current (N·m) Rated Current (mA) Maximum Speed (rpm) Kinetic Power* -
5 Minutes (W)		 Kinetic Power* -
Continuous (W)		 Downloads Pillow Block (Model)
HCF-8M 0,0565 150 3 600 60 15 pdf | step |
pillow block pdf		 4729
HCF-16M 0,113 270 3 600 75 20 pdf | step |
pillow block pdf		 4729
HCF-32M 0,23 332 3 600 90 25 pdf | step | curve | pillow block pdf 4724
HCF-120M 0,85 200 3 600 300 75 pdf | step | curve | pillow block pdf 4725
HCF-250M 1,80 415 3 600 450 110 step |
pillow block pdf		 4830

HCS Series

Hysteresis
Clutch
Model 		Minimum
Torque
at Rated
Current
(oz·in)		 Rated
Current
(mA)		 Maximum
Speed
(rpm)		 Kinetic Power* -
5 Minutes
(W)		 Kinetic Power* -
Continuous
(W)		 Downloads Pillow
Block
(Model)
HCS-100 100 200 3 600 300 75 pdf | step 4755
HCS-210 210 375 3 600 450 110 pdf | step 4760
HCS-420 420 460 3 600 670 160 pdf | step 4759
Obsolete Clutch Models (for information only—these clutches are no longer available) Alternative Model
HCS-8 8 oz·in 197 3,600 60 15 HCF-8M
HCS-16 16 oz·in 192 3,600 75 20 HCF-16M
HCS-120 120 oz·in 200 3,600 300 75 HCS-100 / HCF-120M

* Kinetic power ratings are maximum values based on limiting coil and/or bearing temperature to approximately 100 ºC, and should not be exceeded. Actual values in service may vary ±50% depending on mounting, ventilation, ambient temperature, etc. **Standard coil voltage is 24 VDC. 90 volt, 12 volt and non-standard coil voltages are available on request.

Applications

In some control applications, the Hysteresis Brake and Clutch has no equal. Ideally suited to torque limiting situations such as bottle capping, bolt tightening, etc., the Hysteresis Clutch provides absolute control and the smooth application of torque with almost no maintenance. The design does not use slip rings or brushes and relies on the hysteresis principle of development of torque without friction components or magnetic particles. Therefore, there is never any fear of contamination due to wear particles or leaky seals which makes Magtrol Hysteresis Clutches ideal for use in food processing and clean room environments.

Closed loop winding tension control – Hysteresis Clutch on powered rewind. Tension controlled by means of dancer roller with potentiometer, clutch and controller.

Magtrol Hysteresis Clutches provide precise control of torque for capping, bolting and other screw applications. Their clean particle-free nature eliminates fear of contamination, making them ideal for use in food processing and clean room environments.

Torque limiting Hysteresis Clutch arrangement prevents over torque and provides precise, stable and smooth application of torque.

WP_Query Object
(
    [query] => Array
        (
            [post_type] => product
            [ignore_sticky_posts] => 1
            [no_found_rows] => 1
            [posts_per_page] => -1
            [orderby] => rand
            [post__in] => Array
                (
                    [0] => 1134
                    [1] => 1121
                    [2] => 1127
                    [3] => 1130
                )

            [post__not_in] => Array
                (
                    [0] => 937
                )

        )

    [query_vars] => Array
        (
            [post_type] => product
            [ignore_sticky_posts] => 1
            [no_found_rows] => 1
            [posts_per_page] => -1
            [orderby] => rand
            [post__in] => Array
                (
                    [0] => 1134
                    [1] => 1121
                    [2] => 1127
                    [3] => 1130
                )

            [post__not_in] => Array
                (
                    [0] => 937
                )

            [error] =>
            [m] =>
            [p] => 0
            [post_parent] =>
            [subpost] =>
            [subpost_id] =>
            [attachment] =>
            [attachment_id] => 0
            [name] =>
            [static] =>
            [pagename] =>
            [page_id] => 0
            [second] =>
            [minute] =>
            [hour] =>
            [day] => 0
            [monthnum] => 0
            [year] => 0
            [w] => 0
            [category_name] =>
            [tag] =>
            [cat] =>
            [tag_id] =>
            [author] =>
            [author_name] =>
            [feed] =>
            [tb] =>
            [paged] => 0
            [meta_key] =>
            [meta_value] =>
            [preview] =>
            [s] =>
            [sentence] =>
            [title] =>
            [fields] =>
            [menu_order] =>
            [embed] =>
            [category__in] => Array
                (
                )

            [category__not_in] => Array
                (
                )

            [category__and] => Array
                (
                )

            [post_name__in] => Array
                (
                )

            [tag__in] => Array
                (
                )

            [tag__not_in] => Array
                (
                )

            [tag__and] => Array
                (
                )

            [tag_slug__in] => Array
                (
                )

            [tag_slug__and] => Array
                (
                )

            [post_parent__in] => Array
                (
                )

            [post_parent__not_in] => Array
                (
                )

            [author__in] => Array
                (
                )

            [author__not_in] => Array
                (
                )

            [suppress_filters] =>
            [cache_results] =>
            [update_post_term_cache] => 1
            [lazy_load_term_meta] => 1
            [update_post_meta_cache] => 1
            [nopaging] => 1
            [comments_per_page] => 50
            [order] =>
        )

    [tax_query] => WP_Tax_Query Object
        (
            [queries] => Array
                (
                )

            [relation] => AND
            [table_aliases:protected] => Array
                (
                )

            [queried_terms] => Array
                (
                )

            [primary_table] => wp_posts
            [primary_id_column] => ID
        )

    [meta_query] => WP_Meta_Query Object
        (
            [queries] => Array
                (
                )

            [relation] =>
            [meta_table] =>
            [meta_id_column] =>
            [primary_table] =>
            [primary_id_column] =>
            [table_aliases:protected] => Array
                (
                )

            [clauses:protected] => Array
                (
                )

            [has_or_relation:protected] =>
        )

    [date_query] =>
    [request] => SELECT   wp_posts.* FROM wp_posts  WHERE 1=1  AND wp_posts.ID IN (1134,1121,1127,1130) AND wp_posts.post_type = 'product' AND (wp_posts.post_status = 'publish')  ORDER BY RAND()
    [posts] => Array
        (
            [0] => WP_Post Object
                (
                    [ID] => 1134
                    [post_author] => 1
                    [post_date] => 2017-04-07 17:18:50
                    [post_date_gmt] => 2017-04-07 17:18:50
                    [post_content] =>
                    [post_title] => Hysteresis Brake & Clutch Accessories
                    [post_excerpt] =>
                    [post_status] => publish
                    [comment_status] => open
                    [ping_status] => closed
                    [post_password] =>
                    [post_name] => hysteresis-brake-clutch-accessories
                    [to_ping] =>
                    [pinged] =>
                    [post_modified] => 2018-02-01 15:14:19
                    [post_modified_gmt] => 2018-02-01 15:14:19
                    [post_content_filtered] =>
                    [post_parent] => 0
                    [guid] => https://www.magtrol.com/?post_type=product&p=1134
                    [menu_order] => 110
                    [post_type] => product
                    [post_mime_type] =>
                    [comment_count] => 0
                    [filter] => raw
                )

            [1] => WP_Post Object
                (
                    [ID] => 1121
                    [post_author] => 1
                    [post_date] => 2017-04-07 17:05:41
                    [post_date_gmt] => 2017-04-07 17:05:41

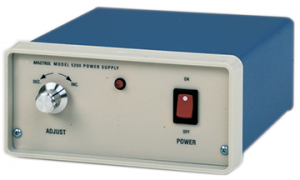

                    [post_content] => The Model 5200 is a basic unregulated power supply that is designed for use with Magtrol's Hysteresis Brakes and Clutches. The 5200 is available in either 12, 24 or 90 VDC voltages, corresponding to the available hysteresis brake/clutch coil voltage options. Braking control is enabled via a 10-turn potentiometer and adjustment knob located on the front panel.
