Product Description

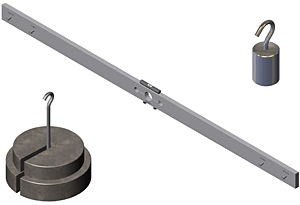

Magtrol offers these calibration beam assemblies and weights for calibrating HD-Series Hysteresis Dynamometers. To perform a successful dynamometer calibration, precision weights heavy enough to apply a torque at or close to the full scale rating are required. Magtrol WT Series Calibration Weights are equal to the dynamometer’s torque value, divided by the distance between the outer pin and centerline of the corresponding CB Series Calibration Beam. Calibration Weights are available in English or SI units. Calibration Beams are marked for both English and SI weights. For detailed dimension drawings, click on the model’s underlined link. A PDF document will open in a new window.(Adobe Acrobat Reader 7.0, or later, is required.)
Specifications and Drawings
For detailed dimension drawings, click on the corresponding link in the table below. A PDF document will open in a new window.
Calibration Beam Assembly | Downloads | For Hysteresis Dynamometer | Full Scale Torque (English) | Pin Location in (English) | Mass (English) | Weight Model (English) | Full Scale Torque (SI) | Pin Location cm (SI) | Mass (SI) | Weight Model (SI) | Weight Type & Tolerance |
---|
CB-106 | pdf | step | HD-106 | 2.50 oz·in | 2.500 | 1 oz | WT-106 | 18.00 mN·m | 9.18 | 20 g | WT-106M | Hook weights: “NIST Class F” |
CB-100 | pdf | step | HD-100 | 11.00 oz·in | 5.500 | 2 oz | WT-100 | 80.0 mN·m | 8.16 | 100 g | WT-100M | Hook weights: “NIST Class F” |
CB-400 | pdf | step | HD-400 | 40.0 oz·in | 5.000 | 8 oz | WT-400 | 280 mN·m | 14.28 | 200 g | WT-400M | Hook weights: “NIST Class F” |
CB-500 | pdf | step | HD-500 | 120.0 oz·in | 7.500 | 1.0 lb | WT-500 | 850 mN·m | 17.34 | 500 g | WT-500M | Hook weights: “NIST Class F” |
CB-500 | pdf | step | HD-510 | 120.0 oz·in | 7.500 | 1.0 lb | WT-500 | 850 mN·m | 17.34 | 500 g | WT-500M | Hook weights: “NIST Class F” |
CB-500 | pdf | step | HD-505 | 240 oz·in | 7.500 | 2.0 lb | WT-505 | 1700 mN·m | 17.34 | 1.0 kg | WT-505M | Hook weights: “NIST Class F” |
CB-500 | pdf | step | HD-515 | 240 oz·in | 7.500 | 2.0 lb | WT-505 | 1700 mN·m | 17.34 | 1.0 kg | WT-505M | Hook weights: “NIST Class F” |
CB-700 | pdf | step | HD-700 | 440 oz·in | 11.000 | 2.5 lb | WT-700 | 3.10 N·m | 31.61 | 1.0 kg | WT-700M | Hook weights: “NIST Class F” |
CB-700 | pdf | step | HD-710 | 440 oz·in | 11.000 | 2.5 lb | WT-700 | 3.10 N·m | 31.61 | 1.0 kg | WT-700M | Hook weights: “NIST Class F” |
CB-700 | pdf | step | HD-705 | 55.0 lb·in | 11.000 | 5.0 lb | WT-705 | 6.20 N·m | 31.61 | 2.0 kg | WT-705M | Hook weights: “NIST Class F” |
CB-700 | pdf | step | HD-715 | 55.0 lb·in | 11.000 | 5.0 lb | WT-705 | 6.20 N·m | 31.61 | 2.0 kg | WT-705M | Hook weights: “NIST Class F” |
CB-ED-715 | pdf | ED-715 | 55.0 lb·in | 11.000 | 5.0 lb | WT-705 | 6.20 N·m | 31.61 | 2.0 kg | WT-705M | Hook weights: “NIST Class F” |
CB-800 | pdf | step | HD-800 | 125.0 lb·in | 15.625 | 8.0 lb | WT-800 | 14.00 N·m | 47.59 | 3.0 kg | WT-800M | Slotted weights: “ANSI/ASTM Class 6” |
CB-800 | pdf | step | HD-810 | 125.0 lb·in | 15.625 | 16.0 lb | WT-800 | 14.00 N·m | 47.59 | 3.0 kg | WT-800M | Slotted weights: “ANSI/ASTM Class 6” |
CB-800 | pdf | step | HD-805 | 250 lb·in | 15.625 | 16.0 lb | WT-805 | 28.0 N·m | 47.59 | 6.0 kg | WT-805M | Slotted weights: “ANSI/ASTM Class 6” |
CB-800 | pdf | step | HD-815 | 250 lb·in | 15.625 | 16.0 lb | WT-805 | 28.0 N·m | 47.59 | 6.0 kg | WT-805M | Slotted weights: “ANSI/ASTM Class 6” |
CB-ED-815 | pdf | ED-815 | 250 lb·in | 15.625 | 16.0 lb | WT-805 | 28.0 N·m | 47.59 | 6.0 kg | WT-805M | Slotted weights: “ANSI/ASTM Class 6” |
CB-825 | pdf | step | HD-825 | 500 lb·in | 20.000 | 25.0 lb | WT-825 | 56.5 N·m | 38.41 | 15.0 kg | WT-825M | Slotted weights: “ANSI/ASTM Class 6” |
Old-Style Calibration Beams
***Obsolete. Information for Reference Only.***
For calibrating HD-Series Hysteresis Dynamometers purchased prior to 2007, Magtrol offers the following calibration beam assemblies. For detailed dimension drawings, click on the model’s underlined link. A PDF document will open a new window.(Adobe Acrobat Reader 7.0, or later, is required.)
Calibration Beam Assembly Stock Code Number | For Hysteresis Dynamometer | Full Scale Torque (English) | Pin Location in (English) | Full Scale Torque (SI) | Pin Location cm (SI) |
---|
400106 | HD-106 | 2.50 oz·in | 3.000 | 18.00 mN·m | 6.00 |
400100 | HD-100 | 11.00 oz·in | 5.000 | 80.0 mN·m | 10.00 |
400400 | HD-400 | 40.0 oz·in | 5.000 | 280 mN·m | 10.00 |
400500 | HD-500 | 120.0 oz·in | 5.000 | 850 mN·m | 10.00 |
400500 | HD-510 | 120.0 oz·in | 5.000 | 850 mN·m | 10.00 |
400500 | HD-505 | 240 oz·in | 5.000 | 1.7 N·m | 10.00 |
400500 | HD-515 | 240 oz·in | 5.000 | 1.7 N·m | 10.00 |
404869 | HD-700 | 425 oz·in | 10.000 | 3.0 N·m | 20.00 |
404869 | HD-710 | 400 oz·in | 10.000 | 3.25 N·m | 20.00 |
404869 | HD-705 | 50.0 lb·in | 10.000 | 6.0 N·m | 20.00 |
404869 | HD-715 | 55.0 lb·in | 10.000 | 6.5 N·m | 20.00 |
404871 | ED-715 | 55.0 lb·in | 10.000 | 6.20 N·m | 20.00 |
400800 | HD-800 | 100.0 lb·in | 20.000 | 12.0 N·m | 50.00 |
400800 | HD-810 | 125.0 lb·in | 20.000 | 14.0 N·m | 50.00 |
400800 | HD-805 | 200 lb·in | 20.000 | 24.0 N·m | 50.00 |
400800 | HD-815 | 250 lb·in | 20.000 | 28.0 N·m | 50.00 |
404826 | ED-815 | 250 lb·in | 20.000 | 28.0 N·m | 38.41 |
404801 | HD-825 | 500 lb·in | 20.000 | 56.5 N·m | 50.00 |
