Brakes
Pure Hysteresis Brakes produce torque strictly through a magnetic air gap without the use of magnetic particles or friction components. This method of braking provides far superior operating characteristics (smoother torque, longer life, superior repeatability, high degree of controllability, and less maintenance and down time) which make them the preferred choice for precise tension control during the processing of nearly any material, web or strand.
- View ProductRead more

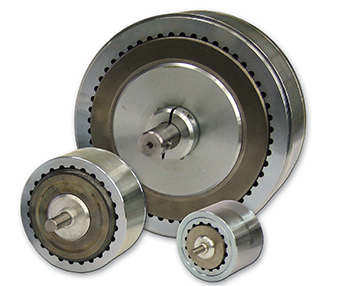

HB Series – Hysteresis Brakes
Pure Hysteresis Brakes produce torque strictly through a magnetic air gap without the use of magnetic particles or friction components. This method of braking provides far superior operating characteristics (smoother torque, longer life, superior repeatability, high degree of controllability, and less maintenance and down time) which make them the preferred choice for precise tension control… Read more »
- View ProductRead more
MHB Series – Matched Hysteresis Brakes
In tension control applications that have multiple webs or multiple strands, it is very desirable to match the tension of each web or strand. This is most commonly attained by using a closed loop servo control system which controls current to a braking device through the use of dancer arms, follower arms and in-line tension… Read more »
- View ProductRead more

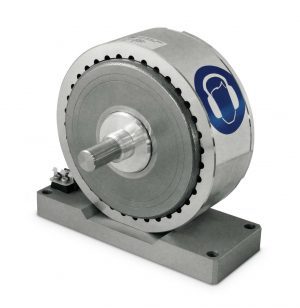

AHB Series – Compressed-air-cooled Hysteresis Brakes
When torque control/torque measurement must be performed at the highest possible power, Magtrol AHB Series Hysteresis Brakes are ideal. Passages running through the brakes enables compressed air cooling, providing excellent heat dissipation. This design allows for continuous power ratings up to 3000 watts (5300 watts intermittent). Use of pre-loaded bearings in the AHB Series Hysteresis… Read more »
- View ProductRead more
BHB Series – Blower-cooled Hysteresis Brakes
When torque control/torque measurement must be performed at the highest possible power, Magtrol BHB Series Hysteresis Brakes are ideal. This design allows for continuous power ratings up to 6000 watts (7000 watts intermittent). Use of pre-loaded bearings in the BHB Series Hysteresis Brakes allows operation at speeds of up to 20,000 rpm for extended durations…. Read more »
- View ProductRead more

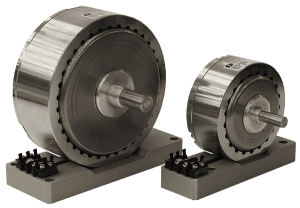

CHB Series – Base Mounted Hysteresis Brakes
Pure Hysteresis Brakes produce torque strictly through a magnetic air gap without the use of magnetic particles or friction components. This method of braking provides far superior operating characteristics (smoother torque, longer life, superior repeatability, high degree of controllability, and less maintenance and down time) which make them the preferred choice for precise tension control… Read more »
- View ProductRead more
LB Series – Large Bore Brakes
For many years Magtrol has designed Hysteresis Brakes with large bores, and without a shaft or bearings. These brakes are used for superior tension control for helical wrapping, braiding and other feed through applications. Magtrol Large Bore Brakes are used in machines for manufacturing cable, wire, fiber optic cable, rope and tape, among others. Magtrol… Read more »
- View ProductRead more

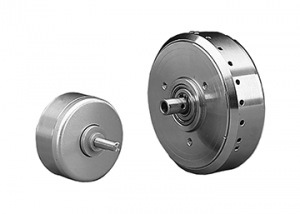

HPM/HPMC Series – Permanent Magnet Brakes and Clutches
Magtrol Hysteresis Permanent Magnet Brakes and Clutches are ideal in applications where electrical power cannot be provided to a brake or clutch coil. While best suited to applications where fixed torque is to be applied, adjustable units can be made specifically tailored to the application. Typically provided as brake units, with the addition of an… Read more »
- View ProductRead more
TPB Series – Torque Powder Brakes
The Torque Powder Brakes (TPB Series) are ideal for applications operating in the low speed range or middle to high torque range. These magnetic powder brakes provide full torque at zero speed and are convection or air cooled, allowing power ratings up to 900 W (2 100 W with air cooling).
- View ProductRead more
Hysteresis Device Special Designs & Modifications
Since 1953, Magtrol has created literally thousands of special and modified brake and clutch designs to help solve specific application problems for our customers. Common Specials and Modifications Include: Non-Standard Coil Voltages Special Shaft Configurations: keyways, flats, holes, hollow Extended Shafts Forced Air Cooled Brakes Adjustable Permanent Magnet Brakes Speed Pickups Special Mounting Configurations Nonstandard… Read more »
