Dynamometers
Magtrol offers three types of Dynamometers, each with a different braking system to absorb load: hysteresis, Eddy-current and powder. Magtrol’s dynamometers, electronics and software are used for testing all types of electric and pneumatic motors, gas engines and gearheads, as well as servo drives and inverters.
With over 50 dynamometers to choose from, and the availability of Customised Motor Test Systems (CMTS), virtually every motor testing requirement can be met.
- View ProductRead more

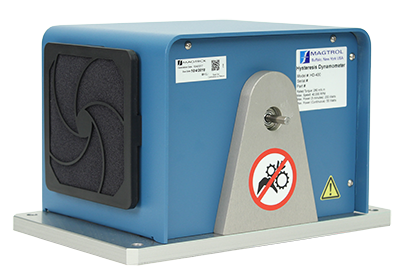

HD Series – Hysteresis Dynamometers
Hysteresis Brake Dynamometers (HD Series) are versatile and ideal for testing in the low to medium power range (maximum 14 kW intermittent duty). With a Hysteresis Braking system, the Dynamometers do not require speed to create torque, and therefore can provide a full motor ramp from free-run to locked rotor. Brake cooling is provided by… Read more »
- View ProductRead more
Micro Dyne System
Finally… a Micro Dyne system designed specifically for your micro motors! With over 50 years’ experience in dynamometer design and torque measurement, Magtrol has revolutionized the industry. Magtrol’s new Micro Dyne, capable of measuring extremely low torques (2.0 mN·m can be resolved to 0.0004 mN·m), is designed exclusively for testing miniature and micro motors. For… Read more »
- View ProductRead more
WB 23 and WB 27 – High-Speed Eddy-Current Dynamometers
Magtrol’s WB 23 and WB 27 Eddy-Current Dynamometers are designed for very high-speed motors and dental or surgical tool testing applications. By providing a braking torque that is proportional to the rotational speed, rated torque is reached at the rated speed. The Dynamometer features a low level of inertia, due to small rotor dimensions, and… Read more »
- View ProductRead more

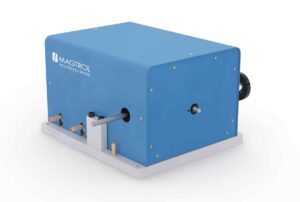

WB Series – Eddy-Current Dynamometers
Eddy-Current Brake Dynamometers (WB Series) are ideal for applications requiring high speeds and also when operating in the middle to high power range. Eddy-Current Brakes provide increasing torque as the speed increases, reaching peak torque at rated speed. The dynamometers have low inertia as a result of small rotor diameter. Brake cooling is provided by… Read more »
- View ProductRead more
PB Series – Powder Brake Dynamometers
The Powder Brake Dynamometer (PB Series) contains, as its name suggests, a magnetic powder. The electrical current passing through the coil generates a magnetic field, which changes the property of the powder, thus producing a smooth braking torque through friction. They are ideal for applications operating in the low to middle speed range or when… Read more »
- View ProductRead more

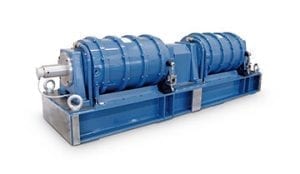

Tandem Series – In-Line Double Dynamometers
Eddy-current Brake Dynamometers (WB series) provide increasing torque as the speed increases, reaching peak torque at rated speed. They are ideal for applications requiring high speeds and also when operating in the middle to high power range. Powder Brake Dynamometers (PB Series) provide full torque at zero speed and are ideal for applications operating in… Read more »
- View ProductRead more

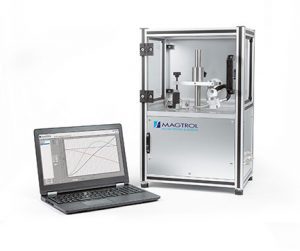

MSD System – Mega Speed Dynamometer
The MSD – Mega Speed Dynamometer was developed for the testing of very high speed motors such as BLDC, Dental Handpieces, Air Turbines and Surgical Tools. The braking effect is based on Eddy-Current induced on an aluminum disc directly mounted on the DUT (Device Under Test) shaft. Torque is measured frictionless by a Reaction Torque… Read more »
- View ProductRead more
ED Series – Engine Dynamometers
With a Magtrol Engine Dynamometer, high performance motor testing is available to manufacturers and users of small gas engines. Magtrol’s Engine Dynamometers have been designed to address the severe, high vibration conditions inherent in internal combustion engine testing. Engine Dynamometers are part of Magtrol’s line of Hysteresis Dynamometers so they are highly accurate (± 0.25%… Read more »
- View ProductRead more

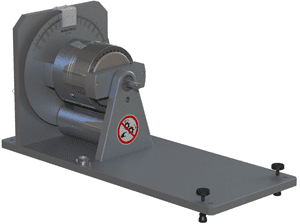

Dial Weight Dynamometers
The most important characteristic of any measurement instrument is repeatability and accuracy. The Magtrol Dial Weight Dynamometer uses the combination of a Hysteresis Brake and gravity to insure constant, reliable results. The brake torque rise is directly proportional to applied current. The calibrated weight system provides readings in standard engineering units through the use of… Read more »
