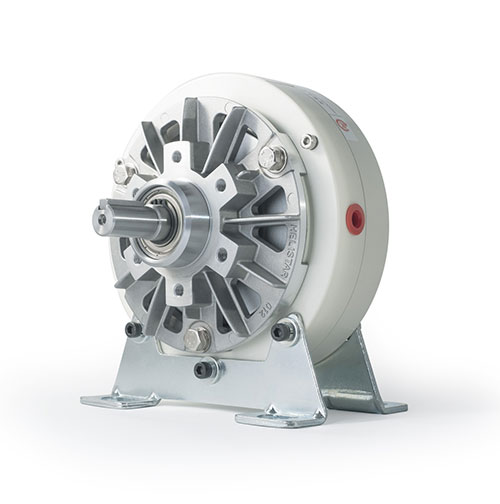

The Torque Powder Brakes (TPB Series) are ideal for applications operating in the low speed range or middle to high torque range. These magnetic powder brakes provide full torque at zero speed and are convection or air cooled, allowing power ratings up to 900 W (2 100 W with air cooling).
| Model | Rated Torque [N·m] | Max Speed [rpm] | Rated Current [A] | Voltage [VDC] | Kinetic Power Ratings - Without Cooling [W] | Kinetic Power Ratings - With Air Cooling [W] | Inertia [kg·m2] | Air Pressure [bar] | Flow Rate [m3/min] | Weight [kg] | Downloads |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TPB 006 | 6 | 1800 | 0.81 | 24 | 50 | Not available | 6.00 x 10-4 | Not available | Not available | 4 | pdf | step |
| TPB 012 | 12 | 0.94 | 145 | 250 | 1.34 x 10-3 | 0.3 | 0.2 | 5 | pdf | step | ||
| TPB 025 | 25 | 1.24 | 230 | 380 | 3.80 x 10-3 | 0.4 | 0.4 | 10 | pdf | step | ||
| TPB 050 | 50 | 2.15 | 360 | 700 | 9.50 x 10-3 | 1.0 | 0.6 | 15 | pdf | step | ||
| TPB 100 | 100 | 2.40 | 600 | 1 100 | 3.50 x 10-2 | 0.6 | 1.1 | 25 | pdf | step | ||
| TPB 200 | 200 | 2.70 | 840 | 1 900 | 9.15 x 10-2 | 0.5 | 1.6 | 55 | pdf | step | ||
| TPB 400 | 400 | 3.50 | 900 | 2 100 | 2.43 x 10-1 | 1.6 | 2.0 | 105 | pdf | step | ||
| TPB 600 | 600 | 4.30 | 900 | 2 100 | 2.45 x 10-1 | 1.6 | 2.0 | 120 | pdf | step |
These units are suited for tension control applications, such as wire winding, foil, film, and tape tension control. Mounted on test benches, TPB Series Torque Powder Brakes allow performance and reliability testing on driving elements such as electric motors, hand-held power tools, geared motors, reduction gears, and hydraulic transmission systems. Other applications include load simulation for life testing on electric motors, actuators, gearboxes, power steering, and many other rotating devices and assemblies.
