5251-2 – Current Regulated Power Supply

Support & Downloads

Product ManualProduct DatasheetProduct Technical Drawing

Description du produit

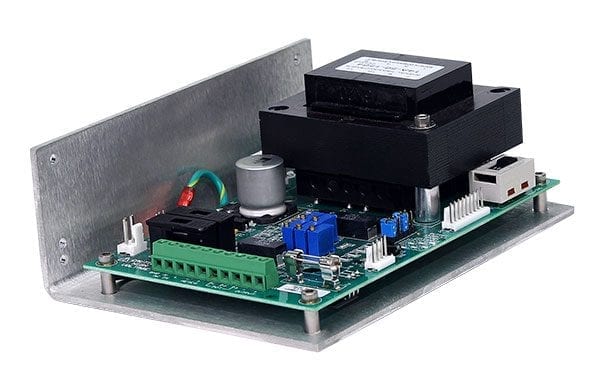

Model 5251-2 is an open frame, 0-1A current regulated power supply for use with Magtrol hysteresis brakes and clutches. It has a high input impedance that allows for a variety of sensors and transducers to be used. It features a selectable 0-100 mV/0-5 VDC monitor out that allows connection to a PLC, voltmeter, display or other monitoring device. This allows the user to monitor the current applied directly to the brake or clutch, if desired. With regulated current, torque drift caused by temperature changes within the brake coil is eliminated. Braking control is enabled by using either a 10-turn potentiometer or by an external 0–5 VDC control signal.

Ordering Information

5251-2Current Regulated Power Supply 115 VAC
5251-2ACurrent Regulated Power Supply 230 VAC



Specifications

Brake Voltage 24 VDC
Current Ranges 0-200 mA, 0-500 mA, 0-1000 mA
Current Regulation ±1% Full Scale
Braking Control 10-Turn Potentiometer or
0-5 VDC External Control
Current Monitor
Output		 Selectable Ranges:
0-200 mV DC
0-500 mV DC
0-1000 mV DC
0-5 V DC
Line Fuse
(5 x 20 mm)		 5251-2: 115 V IEC 1.0 A 250 V T
5251-2A: 230 V IEC 0.4 A 250 V T
Brake Fuse
(5 x 20 mm)		 IEC 1.25 A 250 V T
Power
Requirements		 70 VA
Voltage
Requirements		 115/230 VAC 50/60 HZ
Max. Compliance
Voltage		 45 VDC
