SBB 15 – Signal Breakout Box

Support & Downloads

Product BrochureProduct DatasheetProduct Technical DrawingSchematic

Product Description

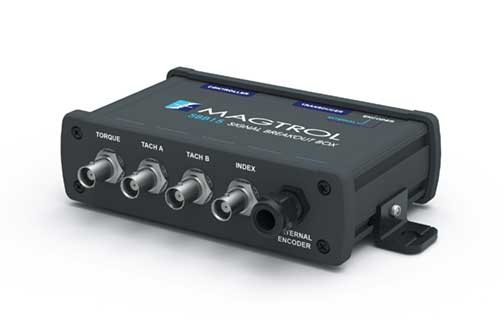

Magtrol’s SBB15 Signal Breakout Box is designed to assist in the monitoring of speed, torque, and index signals obtained from either a Magtrol dynamometer or torque transducer. The easy-to-use SBB15 is simply inserted in series between a Magtrol controller and any Magtrol dynamometer or torque transducer. Connections are made via D-Sub 15 signal cables.

Speed, torque, and index signals are outputted through BNC connectors to an oscilloscope or other DAQ instrumentation device. Switching to the external encoder will switch the Tach A, Tach B, and Index signals, while the Torque signal will still be passed through from the dynamometer or torque transducer. The SBB15 Signal Breakout Box is a convenient and reliable accessory that reduces the necessary wiring required for signal monitoring.

Features

  • Two D-Sub 15 Connectors: provides an in-line connection between a Magtrol DSP Controller and a dynamometer or a torque transducer
  • Four BNC Connectors: provides easy access to Tach A, Tach B, Torque, and Index signals for connecting to an oscilloscope or other data acquisition (DAQ) device
  • Sturdy Assembly: packaged in an extruded aluminum case with metal mounting flanges
  • An external encoder input is provided for connecting high resolution encoders
  • A slide switch allows switching between a torque transducer and an external encoder
