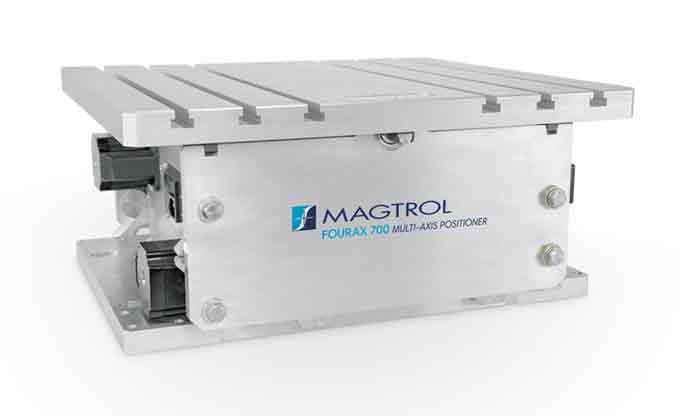

FOURAX-700 Multi-Axis Positioner

Download the Fourax-C1 Software.

Support & Downloads

Product BrochureProduct ManualProduct Datasheet

Product Description

Magtrol FOURAX positioners are parallel-kinematic, multi-axis systems designed specifically for mechanical test labs. Providing 4 axes of motion in one integrated device, the FOURAX can fully position a line in 3-dimensional space, so is well-suited to the alignment of rotary equipment.

Designed for durability and high-capacity as well as precision, the FOURAX can accommodate a wide variety of payloads. Difficult-to-fixture items can be aligned precisely with the FOURAX, eliminating frustrating, time-consuming work with shims, and/or expensive custom fixtures. The FOURAX-700 features a robust aluminum mounting platform with 10mm T-slots in its standard configuration.

The FOURAX does not require any special external electronics or cords. Required connections are one standard USB-C cable, and one standard AC power cord- just like a printer. The easy-to-use FOURAX-C1 software runs on any PC (PC must support LabVIEW™ runtime environment). All common measurement units are supported. Positions may be saved for later recall.

Features

  • 4 axes of motion: Y, Z, Yaw, Pitch
  • Compact
  • High-payload
  • Precise and stable
  • Durable
  • Easy-to-use
  • 10mm T-slot mounting platform, standard
  • No external electronics required: (Included FOURAX-C1 software runs on PC)
