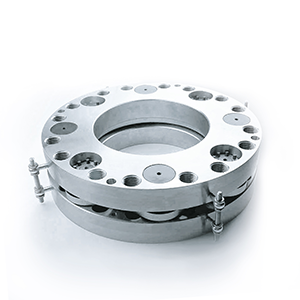

| Model | Torque Flange Sensor | Nominal Coupling Torque* (N·m) | Max. Coupling Torque* (N·m) | Max. Coupling Speed** (rpm) | Misalignment - Axial (mm) | Misalignment - Radial (mm) | Misalignment - Angular (degrees) | Torsional Stiffness (N·m/rad) | Moment of Inertia (kg·m²) | Weight (kg) | Downloads |
|---|---|---|---|---|---|---|---|---|---|---|---|
| KTF-25-2.8 | Tf 309-311 | 280 | 500 | 25,000 | ± 2.0 | ± 0.38 | 0.75° Per Disk Pack | 0.06 × 106 | 0.003 | 2.16 | step |
| KTF-25-4.5 | TF 312 | 450 | 800 | 25,000 | ± 2.4 | ± 0.42 | 0.75° Per Disk Pack | 0.08 × 106 | 0.006 | 3.55 | step |
| KTF-25-17 | TF 313–314 | 1,700 | 3,150 | 15,000 | ± 3.0 | ± 0.42 | 0.75° Per Disk Pack | 0.65 × 106 | 0.018 | 5.39 | step |
| KTF-25-28 | TF 215 | 2,800 | 5,000 | 15,000 | ± 3.2 | ± 0.45 | 0.75° Per Disk Pack | 1.10 × 106 | 0.032 | 7.20 | step |
| KTF-25-64 | TF 216 | 6,400 | 12,500 | 10,000 | ± 4.2 | ± 0.65 | 0.75° Per Disk Pack | 2.31 × 106 | 0.136 | 17.60 | step |
| KTF-25-110 | TF 217 | 11,000 | 20,000 | 10,000 | ± 5.0 | ± 0.75 | 0.75° Per Disk Pack | 3.26 × 106 | 0.251 | 26.00 | step |
* This value only refers to the coupling and not to the TF Torque Flange Sensor.
** Higher speeds available on request.
