Product Description
These high quality, large character digital displays can be used for crane weight display, process weight display, and all other remote weighing applications. They use microprocessor based technology for high reliability and have a non-volatile memory to store all the calibration data.
Load-Force-Weight Systems

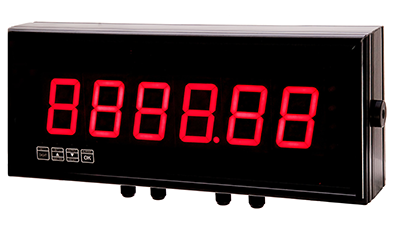

Magtrol Large Digital Displays are used with Load Monitoring Units (LMUs) or signal conditioners (AN Series), as part of a complete measurement system. Magtrol load measuring pins, which measure load and force to provide overload protection, are available for a wide range of Load-Force-Weight, and in various executions and accuracy classes. Combined, these products constitute an ideal safe measurement system for continuous overload monitoring.
Features
- Suspension mounted large LED displays
- Digit sizes: 57, 102, 150, 200, 300 & 400 mm
- Protection class IP 65 (sealed)
- Fully corrosion resistant
- Adjustable brightness
- Power supply: 95…265 VAC
(optional 11…30 VDC or 48 VAC) - Input: 0…10 V, 0…5 V or 0…20 mA, 4…20 mA
- Fully scalable in kg, t (ton), kN, and other engineering units
- Auto tare function
- Optional voltage (0 – 10 V) or current (4 – 20 mA) analog output
Specifications
| SIGNAL PROCESSING |
| Voltage input range | 0 - 10 V / 0 - 5 V / 1 - 5 V |
| Voltage input impedance | 1 MΩ |
| Current input range | 0 - 10 mA / 0 - 20 mA / 4 - 20 mA |
| Current input impedance | 33 Ω |
| MEASUREMENT DISPLAY |
| Type | 7 segments |
| Display definition | -1999 to 9999 (4 digits) or -199999 to 999999 (6 digits) |
| Digits / Color | 4 or 6 digits / red |
| Scaling | Digital zero and full scale adjustable by programming keys |
| Decimal point | Position adjustable by programming keys |
| Filtering / Signal smoothing | Time constant adjustable between 0 and 25 seconds |
| Count-by function | Round-off of the last digits with steps of 1, 2, 5, or 10 |
| Brightness & Readability | GAD Series are primarily intended for indoor applications.
Outdoor models, with enhanced luminosity, are available on request. |
| ACCURACY |
| Maximum error | ± 0.05 % of full scale |
| Stability | ± 25 ppm / °C (full scale) and ± 30 ppm / °C (offset) |
| Reading rate | 10 readings / second |
| Response time | 0.1 second |
| POWER SUPPLY |
| AC power supply | 100 - 240 VAC, 45/60 Hz a) |
| Optional DC power supply | 11 - 30 VDC |
| Power consumption | 50 VA max. |
| MECHANICAL CHARACTERISTIC & ENVIRONMENT |
| Operating temperature | 0 °C to +50 °C b) |
| Storage temperature | -20 °C to +70 °C |
| Protection class | IP 65 (IP 66, with stainless steel enclosure is available on request) |
a) Optional 48 VAC
b) Optional -25 °C to +50 °C
