Product Description

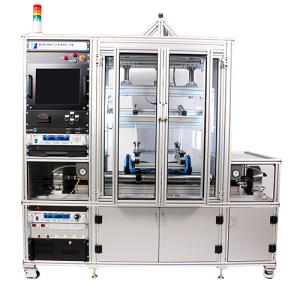

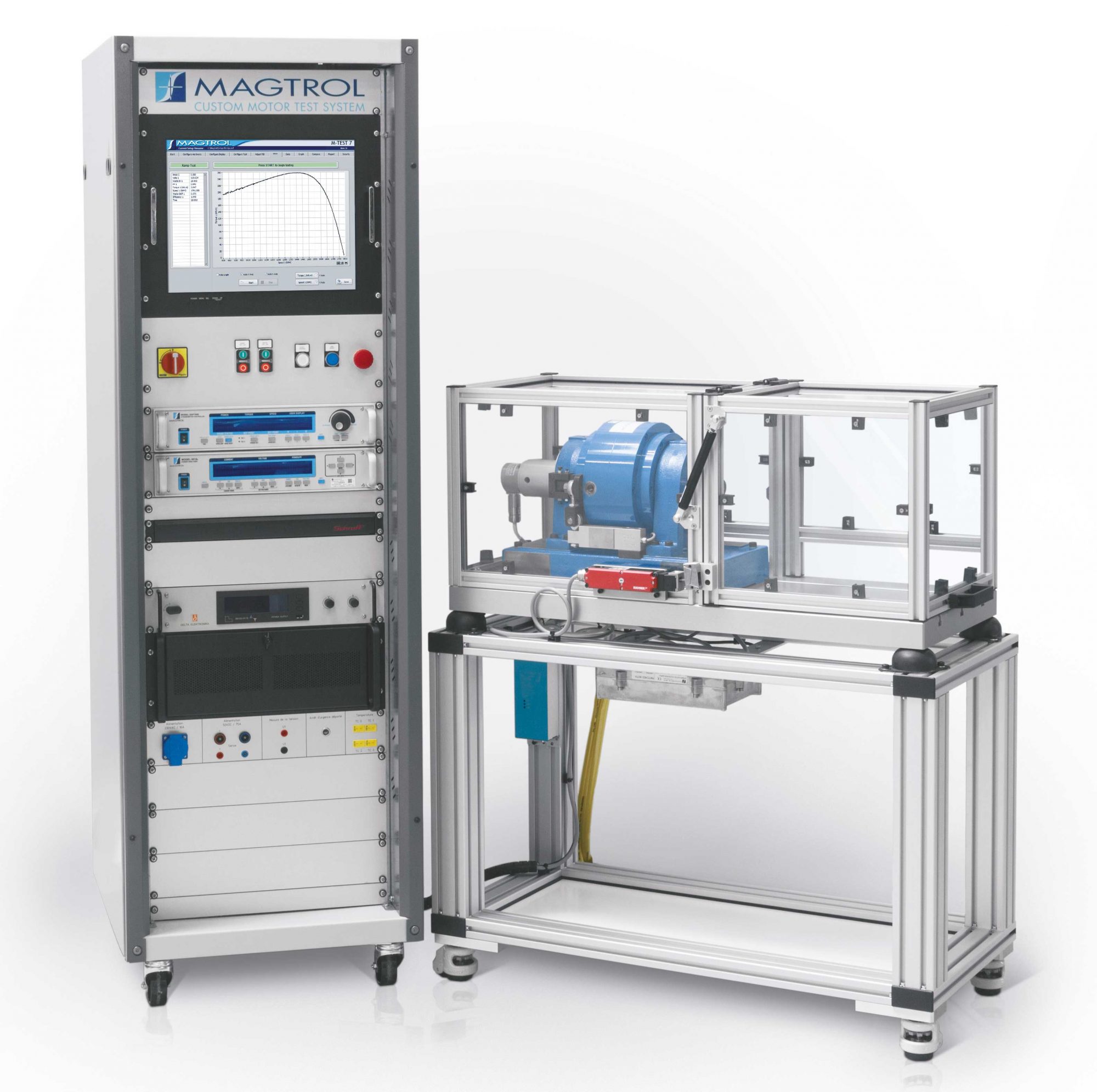

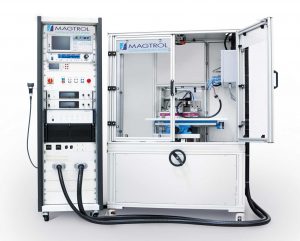

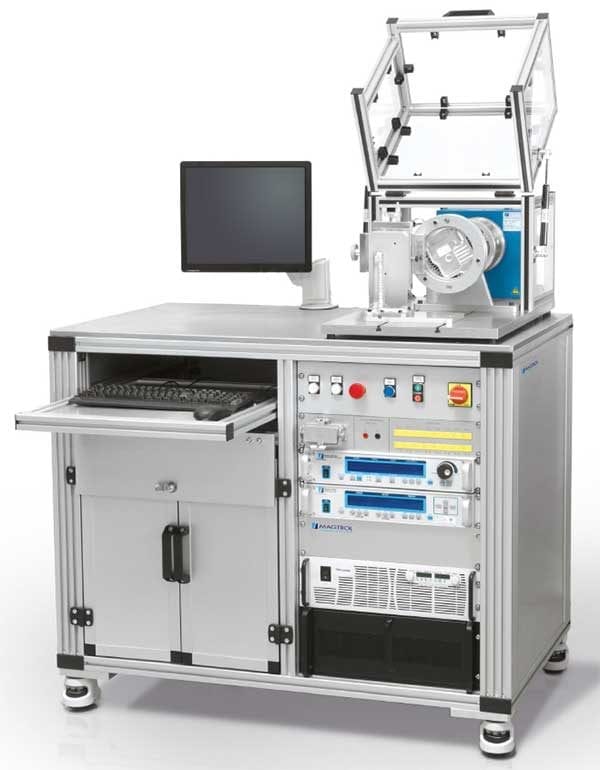

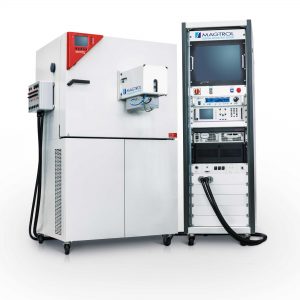

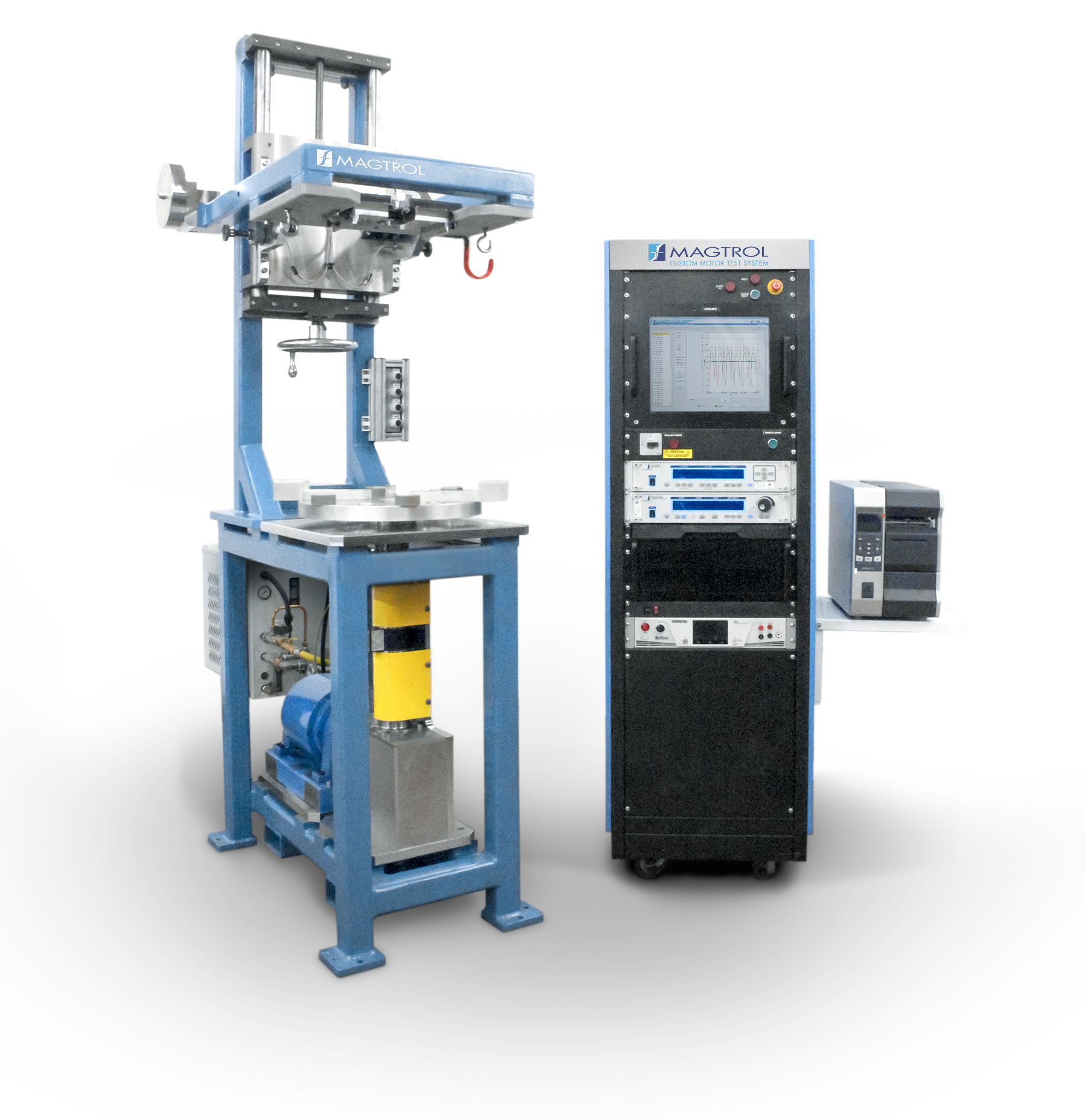

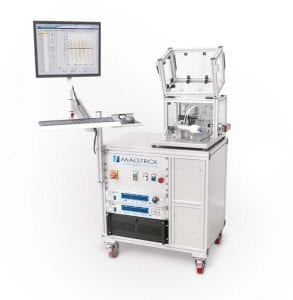

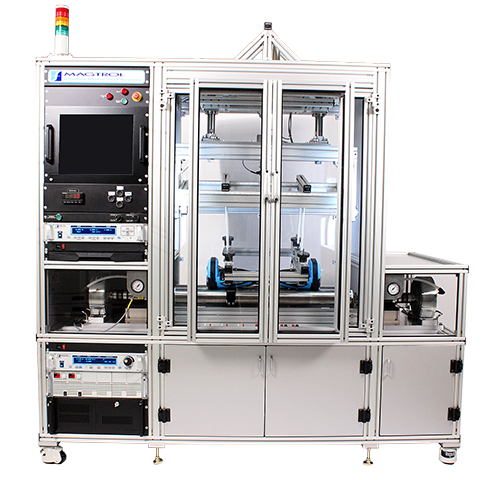

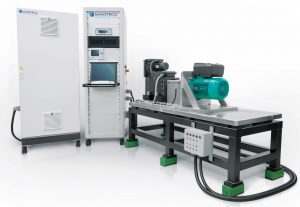

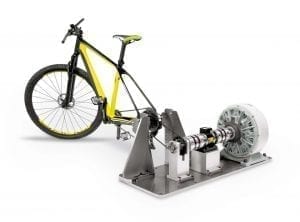

Magtrol’s Customized Motor Test Systems (CMTS) are PC-based, turnkey systems custom designed and built to meet your specific motor testing requirements. By integrating Magtrol’s motor test equipment with power supplies, adaptable fixtures, custom tables/cabinets, printers, etc., Magtrol’s engineering team can customize PC-based, turnkey systems and modular test benches for almost any motor test application.

A Magtrol CMTS may contain any of the following:

  • One or more Dynamometers
  • Programmable Dynamometer Controller
  • Power Analyzer
  • M-TEST Software
  • Motor Power Supply (AC and/or DC)
  • Computer and Printer
  • GPIB Cards and Cables
  • Custom Test Stand, Table or Cabinet
  • Motor Fixturing for Small Motors
  • Couplings
  • Multiple Point Temperature Measurement
  • Cooling System
  • On-Site Services: commissioning & technical training


There are four key items that need to be addressed in selecting the proper motor test system:

  • What type of motors are to be tested?
  • What is the maximum Torque, Speed and Power of the motors?
  • What motor test parameters do you need to test?
  • How do you plan to control the Dynamometer and collect motor test data?

What type of motors are to be tested?

Magtrol Dynamometers are used for testing virtually all types of electric, hydraulic and pneumatic motors, as well as internal combustion gas engines.

What is the maximum Torque, Speed and Power of the motor under test?

Magtrol Dynamometers are rated in three parameters: Torque, Speed and Power.

What motor test parameters do you need to test?

Magtrol Dynamometers provide torque and speed data. Using a Magtrol DSP7000 Dynamometer Controller or Model 6200, mechanical power (in horsepower or watts) is also computed and displayed. The Magtrol Dynamometer Controller also contains an analog input which accepts any 0-5 VDC transducer. The transducer can be used to measure another parameter such as pressure, air flow, noise or a single temperature point.

f motor electrical input power is to be measured, Magtrol offers Single and Three-Phase Power Analyzers. The Power Analyzer option allows for capturing Volts, Amps, Watts and Power Factor.

A Power Analyzer is a required component in a test system measuring motor efficiency.

Magtrol also offers multichannel temperature testing hardware and software. Magtrol can also provide additional parameter testing via customized data acquisition hardware and software.

How do you plan to control the dynamometer and collect motor test data?

Magtrol offers both open-loop manual test systems, and PC based closed-loop test systems.
The open loop system requires motor test data to be acquired manually. A typical open loop system will consist of a Dynamometer and a Magtrol 6200 Open Loop Controller. A Magtrol Single or Three-Phase Power Analyzer can be included as an option. An open loop system is often used for quick pass/fail testing on the production line or at incoming inspection. Magtrol’s 6200 Dynamometer Controller provides pass/fail testing as a standard feature.

In a closed-loop motor test system, data is collected on a PC using Magtrol’s M-TEST Software, a Programmable Dynamometer Controller, and requisite interface cards and cables. A single or three-phase power analyzer can be integrated into this system, as well as Magtrol’s Temperature Testing Hardware and Software. Closed-loop systems are often used in R&D and test lab applications. Closed-loop systems are also used for production line and inspection purposes, especially when automatic data collection is required.

Note: A basic closed loop system would include a dynamometer, programmable dynamometer controller and motor testing software. A comprehensive system would also include a power analyzer, temperature testing software/hardware.


Model Product Description Datasheet
CMTS Testing Aerospace Motors
CMTS Testing Aircraft Tachometers
CMTS Testing Appliance Motors

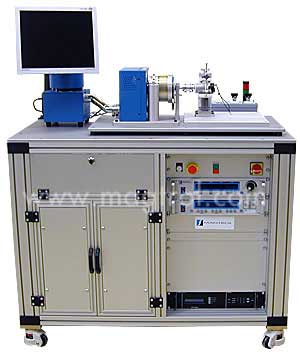

CMTS Testing Hardtop Convertible Motors
CMTS Testing Aircraft Motors
CMTS Testing Electric Pump Motors
CMTS Testing Low RPM Motors
CMTS Testing Steam Turbine Engines
CMTS Testing HVAC/Pump Motors
CMTS Testing Small DC Motors

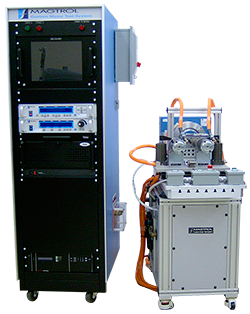

CMTS Testing Starter Motors (with front plug-in panel)

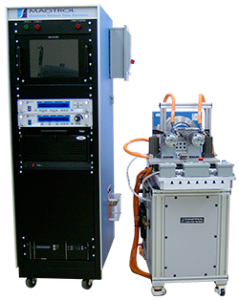

CMTS Testing Starter Motors (continuous testing)
