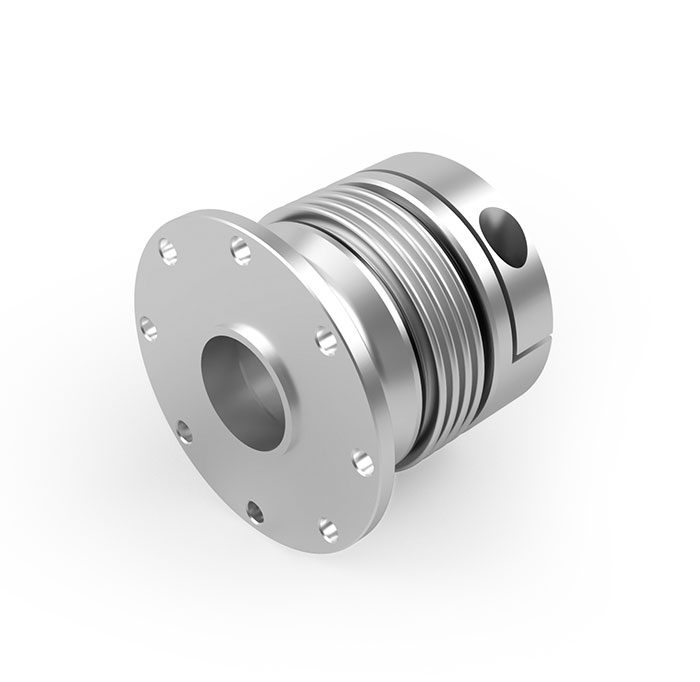

BKC-TF Series – Metal Bellows Couplings

Support & Downloads

Product BrochureProduct Datasheet

Product Description

BKC-TF Series Metal Bellows Couplings provide the ideal complement to Magtrol’s  TF Series Torque Flange Sensors, when mounted in a drive train.

The torque transmission element consists of a metal bellows, clamping hubs for shaft ends and a flange element to connect with the TF Sensor. The couplings are both torsionally stiff and flexible in order to compensate for axial, angular and radial misalignment. The high torsional spring rate of the couplings ensures a high torsional stiffness and angular precision.

Design & Material

Bellows are made of highly flexible high-grade stainless steel. The hub material is made of aluminum stainless steel.

Use of an ISO 4762 radial clamping screw is required for clamping.

Features

  • Metal Bellows Couplings for use with Magtrol TF Series Torque Flange Sensors
  • Designed for transmission of High Torque
  • High Torsional Stiffness
  • Light and Compact Design
  • Radial Clamping Screw hub for smooth shaft
  • Easy to mount
  • Suited for space restricted installations
  • Balancing G 6.3 / ISO 1940 (G 2.5 optional)
  • Aluminum and Stainless Steel Construction

Specifications

ModelBKC-TF 60BKC-TF 150BKC-TF 800BKC-TF 1500
RATINGS
Rated Torque [N·m]1002001 0002 000
Maximum Torque [N·m] a)2004002 0004 000
Maximum Speed G 6.3 [rpm] or [min-1]10 0006 0004 5003 000
Maximum Speed G 2.5 [rpm] or [min-1]17 00013 00010 000
MISALIGNMENT
Axial [mm]1.522.5
Radial [mm]0.20.15
Angular [°]1
STIFFNESS & INERTIA
Torsional Stiffness [N·m/rad]9.31 x 1044.02 x 1051.94 x 1065.40 x 106
Moment of Inertia [kg·m2] x 10-30.5341.2812.778.33
MECHANICAL CHARACTERISTICS & ENVIRONMENT
Temperature Range [°]-30 ... +100
Diameter Range Ø[mm]H7 b)14...3519...4240...7550...80
Hub MaterialAluminumStainless Steel
Keyway c)NoYes
Approximate Weight [kg]0.71.06.310.0

a) Peak torque acceptable, only with keyway DIN 6885 (optional)
b) The standard versions are manufactured with integer values; the standard tolerance is H7. All diameters and  tolerances are possible, within the defined max. range. Please contact our sales department.
c) The standard versions are manufactured with integer values; the standard tolerance is H7. All diameters and tolerances are possible, within the defined max. range. Please contact our sales department.
