Product Description

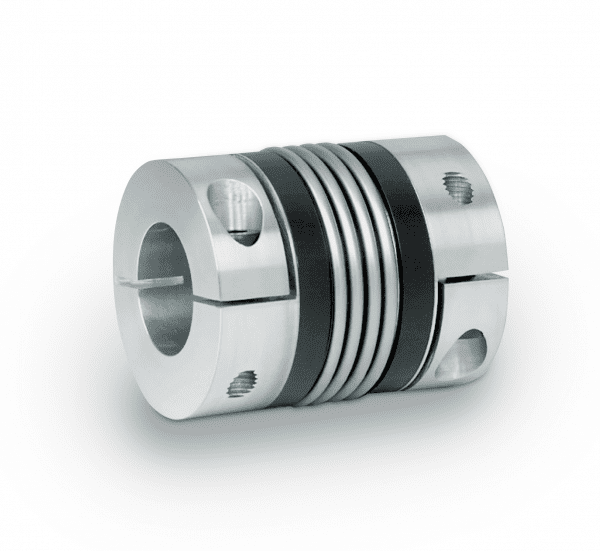

BKC – Metal Bellows Couplings provide the ideal complement to Magtrol’s TM / TMB / TMHS / TS In-Line Torque Transducers and Sensors, when these are to be mounted in a drive train.
The torque transmission element consists of a metal bellows and 2 clamping hubs. The couplings are both torsionally stiff and flexible in order to compensate for axial, angular and radial misalignment when connecting two shaft ends. The high torsional spring rate of the couplings ensures a high torsional
stiffness and angular precision.
Design & Material
Bellows are made of highly flexible high-grade stainless steel, the hub material of aluminum or steel with a single ISO 4762 radial clamping screw per hub.
Features
- Metal bellows couplings for use with Magtrol TM, TMB, TMHS and new TS In-Line Torque Transducers and Sensors
- Easy to mount
- High Torsional Stiffness
- Diameter Range: 8 – 60 mm
- Radial Clamping Screw hub for smooth shaft
- Ideal for the transmission of large torques
Specifications
| MODEL | BKC-15-48 | BKC-30-58 | BKC-60-67 | BKC-150-78 | BKC-300-94 |
|---|
| Can be ideally combined with Torque Transducers | TM 304-307 / TS 104-107 | TM 309 / TS 109 | TM 310 / TS 110 | TM 311 / TS 111 | TM 312 / TS 112 |
| RATINGS |
| Rated Torque [N·m] | 15 | 30 | 60 | 150 N | 300 |
| Maximum Torque [N·m] | 22 | 45 | 90 | 225 | 450 |
| Maximum Speed a) [rpm] or [min-1] | 10 000 |
| Max. Speed with G = 2.5 Balancing b) [rpm] or [min-1] | 60 000 | 40 000 | 25 000 |
| MISALIGNMENT |
| Axial Misalignment c) [mm] | 1 | 1.5 | 2 |
| Radial Misalignment c) [mm] | 0.20 |
| Angular Misalignment c) [°] | 1 degree |
| STIFFNESS & MOMENT OF INERTIA |
| Torsional Stifness [N·m / rad] x 103 | 23 | 31 | 72 | 141 | 157 |
| Axial spring stiffness [N/mm] | 30 | 50 | 67 | 77 | 112 |
| Lateral spring stiffness [N/mm] | 315 | 366 | 679 | 960 | 2940 |
| Moment of Inertia d) [kg·m2] x 10-3 | 0.05 | 0.1 | 0.26 | 0.65 | 6.3 |
| MECHANICAL CHARACTERISTICS |
| Diameter Range e) ø [mm] H7 | 8-28 | 12-32 | 14-35 | 19-42 | 24-60 |
| Hub material | Aluminum | Steel |
a) Without balancing
b) The specified maximum speed may require balancing. By default, Magtrol delivers couplings without balancing.
c) For torque measurement applications, the alignment quality will be much higher than the values listed in the table.
d) According to manufacturer’s specifications
e) The standard versions are manufactured with integer values; the standard tolerance is H7. All diameters and tolerances are possible. Please contact our sales department.
