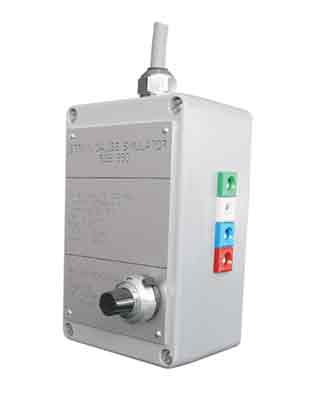

Le SGS-350 de Magtrol est un simulateur de pont de jauges de contrainte constitué d’un circuit entièrement passif.
Il permet de simuler des capteurs à jauges de contrainte ayant une sensibilité comprisent entre 0 … 2 mV/V, dans le but de tester ou calibrer un conditionneur de charge LMU 210 Series (ou autres modèle), en verifiant notamment le déclenchement des seuils de surcharge.
Le SGS-350 peut être alimenté avec 5 … 10 V DC.
Combiné avec un moniteur de charge LMU 210 Series, le simulateur de pont de jauge permet de réaliser des essais de fonctionnement et de paramétrages préalable à une mise au point sur site.
Son boîtier en aluminium assure au SGS-350 une protection renforcé et permet une utilisation dans des environnements particulièrement contraignants.
La version à double canal permet de simuler les paramétrages des capteurs avec ponts de jauge redondants.
