AMF Series – Adjustable Motor Fixtures

Support & Downloads

Product BrochureProduct Datasheet

Product Description

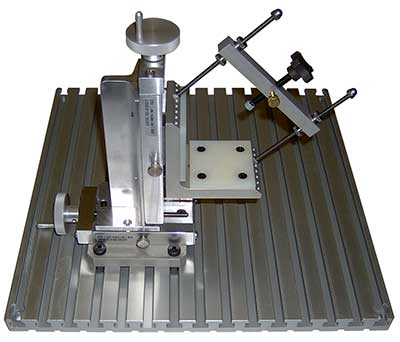

Magtrol’s AMF Series Adjustable Motor Fixtures are used to secure small to medium-sized motors in place while running any test. These extremely versatile fixtures also enable easy motor centering for coupling to a Magtrol HD Series Hysteresis Dynamometer. (Couplings can be supplied upon request.) Various motor lengths are accommodated by either an attached T-slotted base plate or sliding base, depending on the model.

The AMF-1, -2 and -3 Fixtures feature one or two adjustable bridges, each fitted with a fluted knob clamp screw, to allow clamping anywhere along the axis of the motor. The adjustable bridge on the AMF-V Fixture incorporates a straight-line action clamp with a V-angle rubber padded clamp to maximize the mounting area.

To safeguard the motor, locking thumb screws provide protection against vibration and all motor-to-fixture contact surfaces are nylon padded for scratch-free clamping.

Features

  • Accommodate motors up to 8¼ inches in diameter
  • Used with most Magtrol HD Series Dynamometers
  • Secure anchoring system
  • Easy motor centering
  • Extremely versatile and adaptable
  • Vibration protection
  • Scratch-free clamping
  • Tool-free adjustment
  • Direct mounting to Magtrol TAB Series Dynamometer Table or dynamometer base plate (depending on model and system configuration)

Model Comparison and Drawings

  AMF-1 AMF-2 AMF-3 AMF-V
Motor Diameter up to 4 inches up to 6 inches up to 8¼ inches 4 to 8 inches
Dynamometer HD-100, 400 and 500 Series with short base plate option HD-700 Series with short base plate option HD-800 Series with
T-slot base plate option		 HD-800 Series with
T-slot base plate option
Fixture Base T-slot base plate T-slot base plate standard base plate slider
Clamping Bridges 1 2 2 1
View/Download Detailed Drawing pdf | step pdf | step pdf | step pdf

Mounting Example

Magtrol HD-705-XXX-0100 Dynamometer with AMF-2 Adjustable Motor Fixture with 4-inch motor locked in place.
