PSD – Portable Sensor Display

Download software v1.4.18

Support & Downloads

Product BrochureProduct ManualProduct Datasheet

Product Description

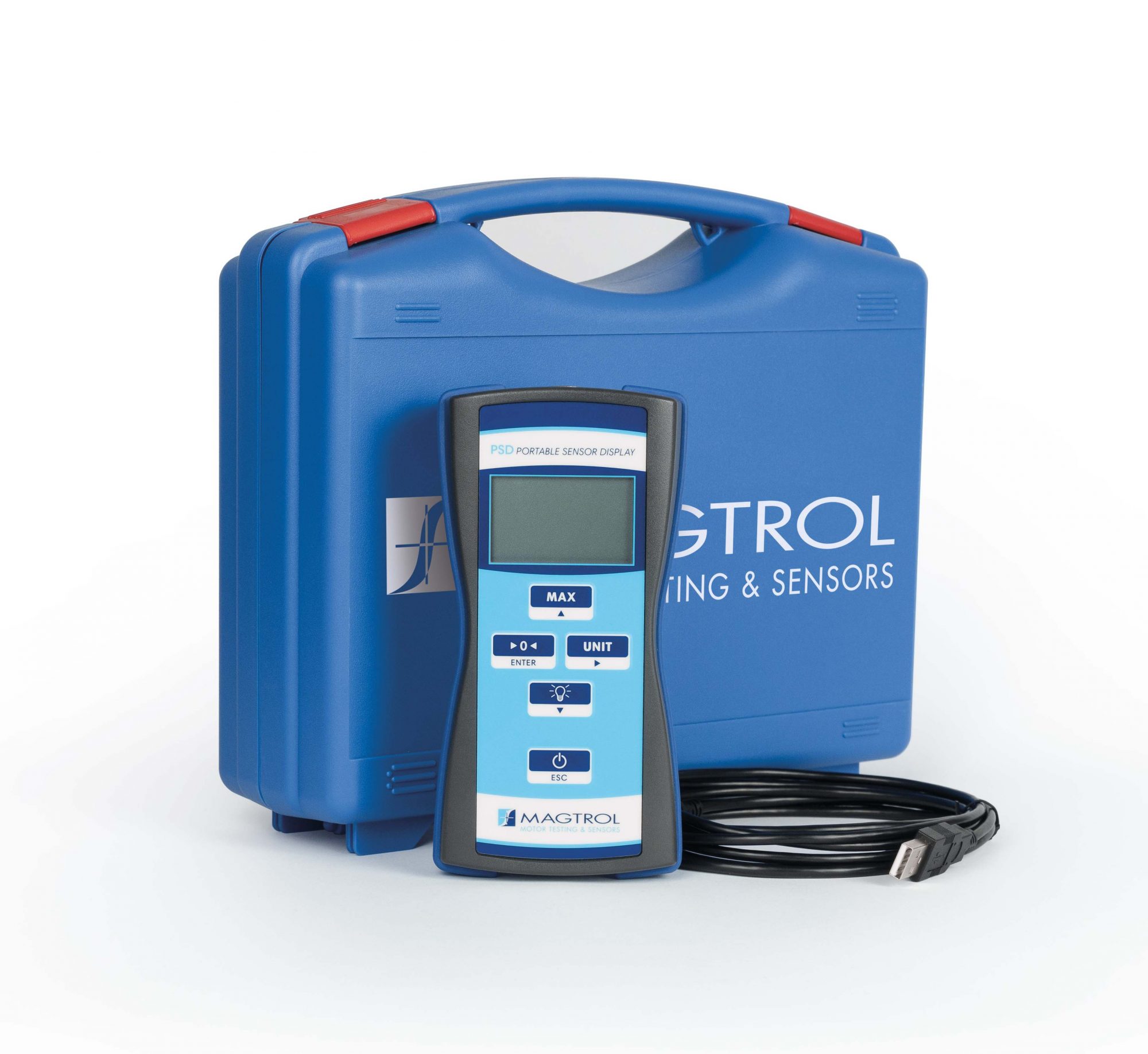

The PSD Portable Sensor Display from Magtrol is a very compact, light and easy to use device. This amplifier can process sensor strain gauge signals ±0.3 … 5 mV/V. High measuring accuracy, paired with fast measuring rates allow an internal resolution of 22 bits at 2 mV/V. It also stores the adjustment data, sensor designation and physical unit. Functions, such as TARE, recall of min.-max. value,… are available during the measurement.

The device is powered by 3 AA batteries or via its USB Mini-B port. In order to increase its duration of use, the PSD integrates an automatic standby mode which is activated when the device is not used.

Features

  • 0.01% Accuracy
  • Rigid Versatile Handheld Instrument
  • Min.-Max. Value Display (Peak & Valley)
  • 16 Programmable Measurement Ranges
  • Measuring Rate up to 1 600 values per second
  • Connection to any type of Strain Gauge Transducers
  • USB 2.0 Interface
  • Battery-powered or USB-powered Device
  • Display Units
  • Character Height: 14 mm
  • Can be programmed directly on the device or by software (provided).

Specifications

MEASUREMENT
Measuring accuracy class0.01 %
Input Signal Range± 0.3 ... 5 mV/V
Input Impedance Range of Strain Gauge Bridge> 150 Ω (2 parallel strain gauge full bridge / 350 Ω) up to 2 000 Ω
Excitation Voltage (full bridge)5.0 V DC
Relative Linearity Error a)0.0015 %
Noise (at measurment rate) a)0.002 (6.25 Hz) ... 0.04 (1 600 Hz)
Temperature Effect (on zero Signal) a)0.002 % / 10K
DISPLAY
Type5-digit LCD graphic display, 128 x 64 pixel, illuminated
Display Range± 99 999
Display Additional ModeMeas / min / max value, overload, units, charge of battery
Display Rate3 times per second
Scaling Point for Linearizationup to 4 points
Internal Resolution a)22 bits
Measuring Rate (average value)6.25 ... 1 600 / s
Measured Value Transmission via USBmax. 1 400 values / s (with software)
Character height14 mm
ELECTRICAL CHARACTERISTICS
Power supply voltage3.0 - 4.8 V DC (3x AA battery) or powering via USB-port
Operating time with batteries~ 40 h
ENVIRONMENT
Operating temperature range-10 °C ... +50 °C
Storage temperature range-20 °C ... +70 °C
Protection class (EN 60529)IP 54 b)
ELECTRICAL CHARACTERISTICS & CONNECTIONS
Connections6 pole axial connector
USB InterfaceUSB Mini-B connector
Weight (without batteries)240 g

a) By or at 2 mV/V
b) In use, transducer connected and USB-port closed

Applications

The PSD Display can be used with many sensors such as force sensors, load cells, torque sensors, anchor sensors or any other type of strain gauge transducers. This portable measurement and display system is particularly suitable in cases where a fixed installation is difficult or irrelevant, such as:

  • Maintenance of installation
  • Intermittent monitoring
  • Laboratory, Research and development,…
  • Installation or monitoring in civil engineering,…
