BK3 Series – Metal Bellows Couplings

Support & Downloads

Product BrochureProduct Datasheet

Product Description

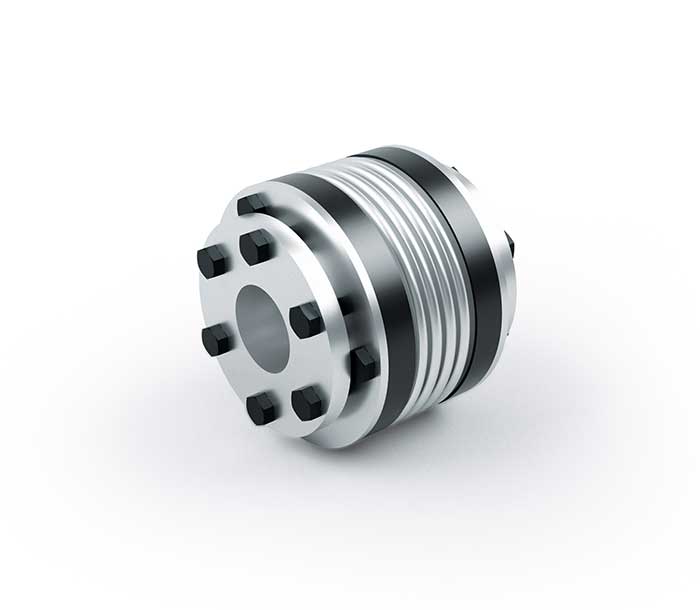

BK3 Series Metal Bellows Couplings provide the ideal complement to Magtrol’s s TM / TMB / TMHS / TS In-Line Torque Transducers and Sensors, when these are to be mounted in a drive train.

The torque transmission element consists of a metal bellows and a conical clamp connection. The couplings are both torsionally stiff and flexible in order to compensate for axial, angular and radial misalignment when connecting two shaft ends. The high torsional spring rate of the couplings ensures a high torsional stiffness and angular precision.

Design & Material

Bellows made of highly flexible high-grade stainless steel, the hub material is made of steel.

The clamping hubs each consist of 2 conical parts, one of which, in contact with the shaft, is slotted. The clamping is done by means of 6 screws ISO 4017 per side.

Features

  • Metal Bellows Couplings for use with Magtrol TM, TMB, TMHS and TS Series In-Line Torque
    Transducers and Sensors
  • Dedicated for transmission of Torque
  • High Torsional Stiffness
  • Diameter Range: 12 … 100mm
  • Clamping to a smooth shaft by tapered conical sleeves
  • Easy to mount

Specifications

MODEL BK3 60-66 BK3 150-75 BK3 200-78 BK3 500-97 BK3 800-114 BK3 1500-141 BK3 4000-195
Torque Transducers TM/TMB/TMHS 309
TS 109		 TM/TMB/TMHS 310
TS 110		 TM/TMB/TMHS 311
TS 111		 TM/TMB/TMHS 312
TS 112		 TM/TMB/TMHS 313
TS 113		 TM/TMB/TMHS 314 TM/TMB/TMHS 315
RATINGS
Rated Torque 60 N·m 150 N·m 200 N·m 500 N·m 800 N·m 1 500 N·m 4 000 N·m
Maximum Torque a) 90 N·m 225 N·m 300 N·m 750 N·m 1 200 N·m 2 250 N·m 6 000 N·m
Maximum Speed b) 10 000 rpm
MISALIGNMENT
Axial 1.5 mm 2 mm 2 mm 2.5 mm 3.5 mm 3.5 mm 3.5 mm
Radial 0.20 mm 0.20 mm 0.25 mm 0.30 mm 0.35 mm 0.35 mm 0.40 mm
Angular 1 degree 1 degree 1 degree 1 degree 1.5 degree 1.5 degree 1.5 degree
STIFFNESS & INERTIA
Torsional Stifness / Torsional Spring Rate 76 × 103 N·m/rad 175 × 103 N·m/rad 191 × 103 N·m/rad 510 × 103 N·m/rad 780 × 103 N·m/rad 1304 × 103 N·m/rad 3400 × 103 N·m/rad
Axial spring stiffness 72 N/mm 82 N/mm 90 N/mm 70 N/mm 100 N/mm 320 N/mm 565 N/mm
Lateral spring stiffness 1 200 N/mm 1 500 N/mm 2 040 N/mm 2 500 N/mm 2 000 N/mm 3 600 N/mm 6 070 N/mm
Moment of Inertia 0.39 × 10-3 kg·m² 1.2 × 10-3 kg·m² 1.7 × 10-3 kg·m² 9.1 × 10-3 kg·m² 13.2 × 10-3 kg·m² 34.9 × 10-3 kg·m² 85.5 × 10-3 kg·m²
MECHANICAL CHARACTERISTICS & ENVIRONMENT
Temperature Range -30 ... +100 °C
Diameter Range c) 12 ... 29 ø[mm]H7 15 ... 38 ø[mm]H7 15 ... 44 ø[mm]H7 24 ... 60 ø[mm]H7 30 ... 60 ø[mm]H7 35 ... 70 ø[mm]H7 50 ... 100 ø[mm]H7
Balancing Quality 2.5 Q
Hub Material Bellows made of highly flexible high-grade stainless steel; hub material is steel
Approximate Weight 0.8 kg 1.2 kg 1.8 kg 4.2 kg 5.6 kg 8.2 kg 23 kg

a) Brief overloads, acceptable up to 1.5 times the rated torque
b) Higher speed available on request
c) The standard versions are manufactured with integer values; the standard tolerance is H7. All diameters and tolerances are possible, within the defined max. range. Please contact our sales department.
