HPM/HPMC Series – Permanentmagnetbremsen und kupplungen

Support & Downloads

DatenblattBroschüren
Permanentmagnetbremsen und -kupplungen

Produktbeschreibung

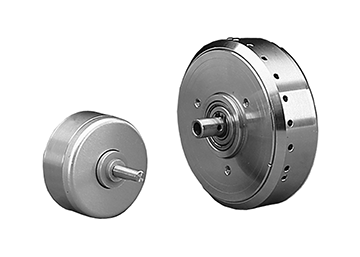

Magtrol’s Permanentmagnet-Hysteresebremsen und –kupplungen eignen sich hervorragend für Einsätze, bei denen die Bremse oder Kupplungsspule nicht mit elektrischem Strom versorgt werden kann. Obwohl sie bestens für Anwendungsfälle geeignet sind, bei denen ein festes Drehmoment einwirken soll, können speziell auf das Anforderungsprofil abgestimmte Verstelleinheiten angefertigt werden. Diese Bauteile werden normalerweise als Bremseinheiten geliefert, können jedoch durch Ergänzung einer Eingangswelle auch als Kupplung verwendet werden. Bei einer Kupplungsanwendung wird das Stator/Gehäuse-Bauteil zum Antriebselement und die Rotor/Wellen-Einheit zum angetriebenen Element der Kupplung, wobei Drehmomente durch ein Magnetfeld im Luftspalt übertragen werden. Magtrol’s Permanentmagnet-Hysteresebremsen zeichnen sich durch hervorragende Betriebseigenschaften aus. Präzise Wiederholgenauigkeit, Sanftlauf und Langlebigkeit sind unseren Standard Hysteresebremsen und Kupplungen eigen.

Spezifikationen

Zur Einsicht der vollständigen technischen Daten und einer allgemeinen Maßzeichnung, laden sie bitte das Datenblatt herunter. Für detaillierte Maßzeichnungen

Nach Anklicken des Download-Icons in der nachstehenden Tabelle öffnet sich ein neues Fenster mit einem PDF-Dokument. (Adobe Acrobat Reader 7.0 oder später erforderlich)

Bremsen Modell Kupplungs Modell Nenn Drehmoment*
(oz·in)		 Maximale Drehzahl**
(rpm)		 Mechanische Leistung - 5 Minuten (w) Mechanische Leistung - Kontinuierlich (w) Zeichenansicht
HPM-2.5 HPMC-2.5 2.5 10,820 20 7 brake pdf | clutch pdf | step
HPM-8 HPMC-8 8 10,140 60 15 brake pdf | clutch pdf | step
HPM-16 HPMC-16 16 6,340 75 20 brake pdf | clutch pdf | step
HPM-32 HPMC-32 32 3,800 90 25 brake pdf | clutch pdf | step
HPM-120 HPMC-120 120 3,380 300 75 brake pdf | clutch pdf | step
HPM-210 HPMC-210 210 2,900 450 110 brake pdf | clutch pdf | step

*Permanentmagnetbremsen können auf Wunsch werkseitig geladen werden, um niedrigere Drehmomente zu erzeugen.

**Die angegebene Nenndrehzahl erzeugt eine mechanische Leistung über 5 Minuten bei Nenndrehmoment.
