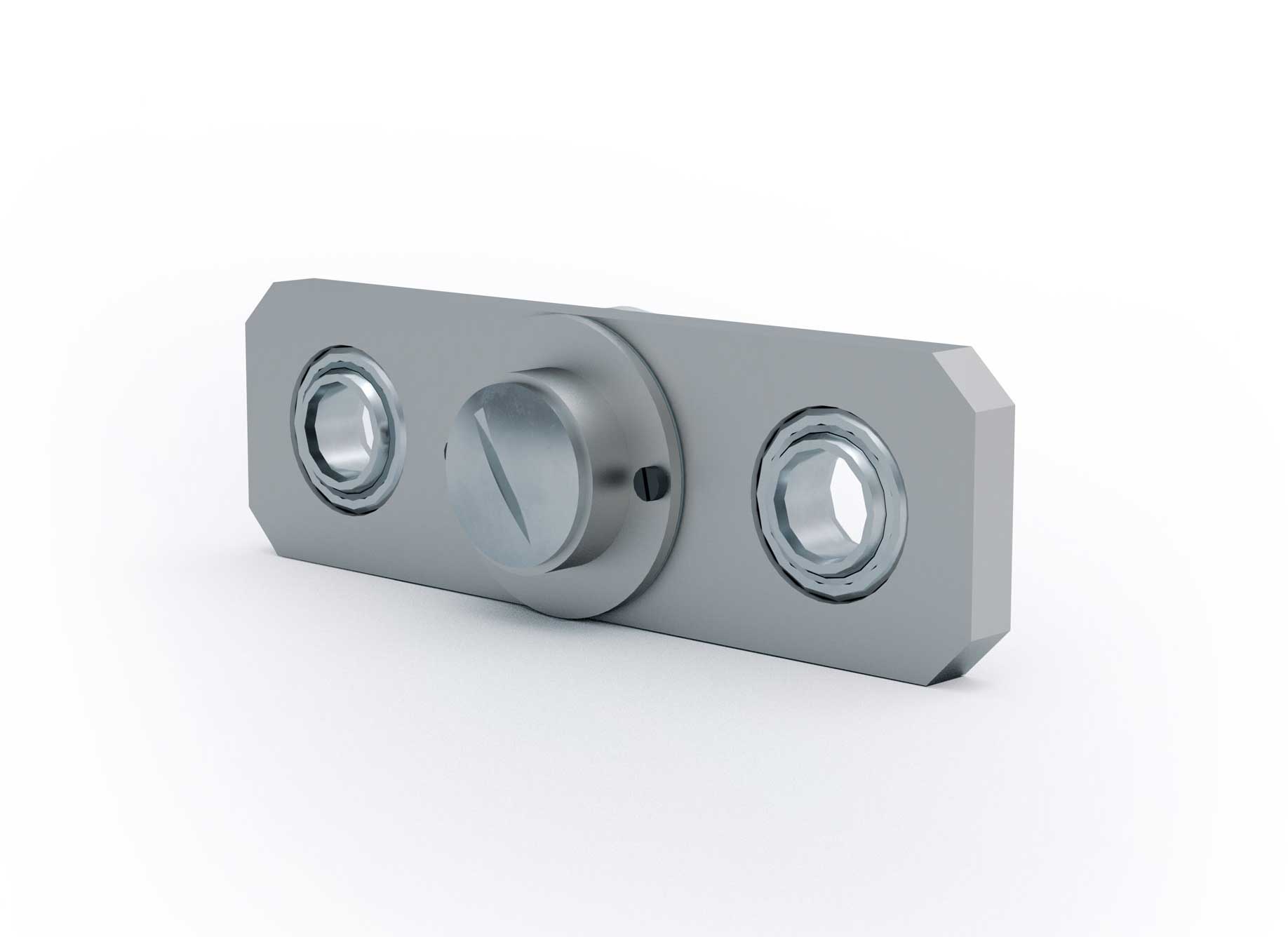

The Magtrol ZL-03 Traction Force Transducer utilizes Strain Gauge Technology and was designed to support the load for long-term dynamic stresses. Connected to a signal conditioner, the transducer will provide signal proportional to the measured load.
| MODEL | ZL-03-10 | ZL-03-25 | ZL-03-50 | ZL-03-75 |
|---|---|---|---|---|
| LOAD MEASUREMENT | ||||
| Nominal Load (NL) | 10 kN | 25 kN | 50 kN | 75 kN |
| Overload Admissible (% of NL) | 150 % | |||
| Breaking Overload (% of NL) | ≥ 500 % | |||
| Combined Error (non linearity + hysteresis) | < ± 0.5 % | |||
| ELECTRICAL CHARACTERISTICS | ||||
| Nominal Sensitivity | 1mV/V | |||
| Input Bridge Impedance | 380 Ω (+40 Ω / -30 Ω) | |||
| Output Bridge Impedance | 350 Ω (± 2 Ω) | |||
| Isolation Resistance | > 5 GΩ | |||
| Surface protection | galvanised | |||
| Power Supply | 5...15 V | |||
| ENVIRONMENT | ||||
| Nominal Temperature | - 10 °C to + 40 °C | |||
| Operating Temperature | - 10 °C to + 60 °C | |||
| Temperature coefficient of signal zero per 10 K for nominal / for operating temperature range |
< ± 0.1 % / < ± 0.2 % | |||
| Temperature coefficient of sensibility per 10 K for nominal / for operating temperature range |
< ± 0.1 % / < ± 0.1 % | |||
| ELECTRICAL CONNECTION | ||||
| Connector | MS 3012 A 4 poles | |||
| Cable assembly (optional) | cable length 3 m with connector | |||
The compact design along with a large overload capacity allows this transducer to provide an excellent ability to measure and monitor the force on crane cables, provide overload protection for elevators and other load measurements in various environments.
