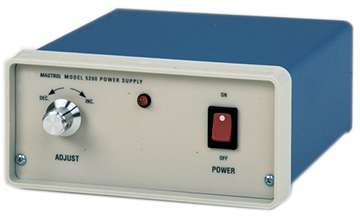

The Model 5200 is a basic unregulated power supply that is designed for use with Magtrol’s Hysteresis Brakes and Clutches. The 5200 is available in either 12, 24 or 90 VDC voltages, corresponding to the available hysteresis brake/clutch coil voltage options. Braking control is enabled via a 10-turn potentiometer and adjustment knob located on the front panel.
| 5200 | 5212-2 | 5251-2 | BPM Series | |
|---|---|---|---|---|
| Brake Voltage | 12, 24, 90 VDC | 24 VDC | 24 VDC | 24 VDC |
| Control Function | voltage, unregulated | current, regulated | current, regulated | current, regulated |
| Current Ranges | 5200-1: 300 mA 5200-2: 1000 mA 5200-3: 1500 mA | 5212-2: 200, 500, 1000 mA | 200, 500, 1000 mA | <1A BPM 101 <3A BPM 103 |
| Braking Control | 10-turn potentiometer | 10-turn potentiometer or external 0–5 VDC input | 10-turn potentiometer or external 0–5 VDC input | 0-10 VDC 0-20 mA 4-20 mA |
| Display | none | LCD - brake current | none | none |
| Computer Interface | none | none | none | none |
| Current Monitor Output | none | none | 0-200 mV DC | none |
| Power Requirements | 100 VA | 100 VA | 100 VA | 2.1 W + Load Power |
| Voltage Requirements | 120/240 VAC 60/50 Hz | 120/240 VAC 60/50 Hz | 120/240 VAC 60/50 Hz | 20-30 VDC 70 mA + Load Current |
