Cable Sensors

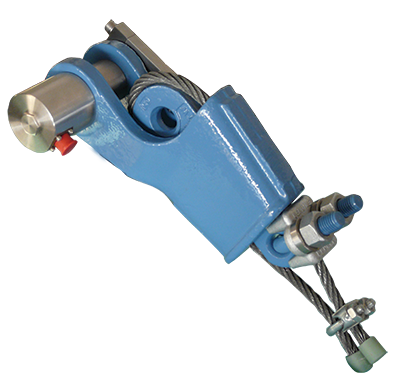

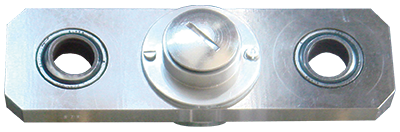

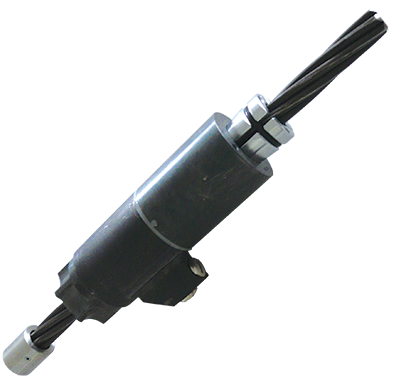

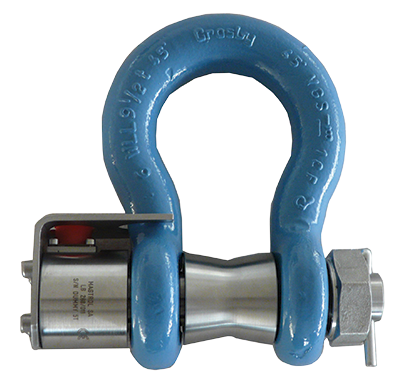

Model	SK-02	ZL-03	SG-01	SLB	KLB/KLE/KLU
Nominal Range	cable Ø : 8 mm – 22 mm (The force will depend on the type of cable used.)	10 kN –100 kN 1 t – 10 t	160 kN others on request	25 kN - 200 kN	20 kN - 160 kN
Force Direction	↑	↑	↓	↓	↓
Combined Error	1% – 2%	0.5%	1%	1 - 2%	1 - 2%
Admissible Overload	150%	150%	150%	150%	150%
Overload at Rupture	---	500%	350%
Impedance	350 Ω	350 Ω	700 Ω	350 Ω	350 Ω
Operating Temperature	-10 °C to +60 °C	-10 °C to +60 °C	-10 °C to +60 °C	-25 °C to +80 °C	-25 °C to +80 °C
Output Signal	1 mV/V	1 mV/V	1.2 mV/V
Material	stainless steel	high-resistance steel	high-resistance steel	stainless steel	stainless steel
Protection Class	IP65	IP65	IP67	IP66	IP66
Sensor Power Supply	5–10 VDC	5–10 VDC	5–10 VDC	5–10 VDC	5–10 VDC
Applications	cranes, lifting devices, ski lifts	cranes, lifting devices, ski lifts	cable traction control	cranes, winches, lifting	cable, hoisting and crane security
Data Sheet			-
